PQ1U361M2ZPH

PQ1U361M2ZPH

Part Number
PQ1U361M2ZPH
Manufacturer Sharp Microelectronics
Other Part Numbers
PQ1U361M2ZPH-ND
Description IC REG LINEAR 3.6V 150MA SOT23-5
Detailed Description Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5

Product Attributes

Category
Manufacturer Sharp Microelectronics
Series
Packaging
Tape & Reel (TR)
Part Status Obsolete

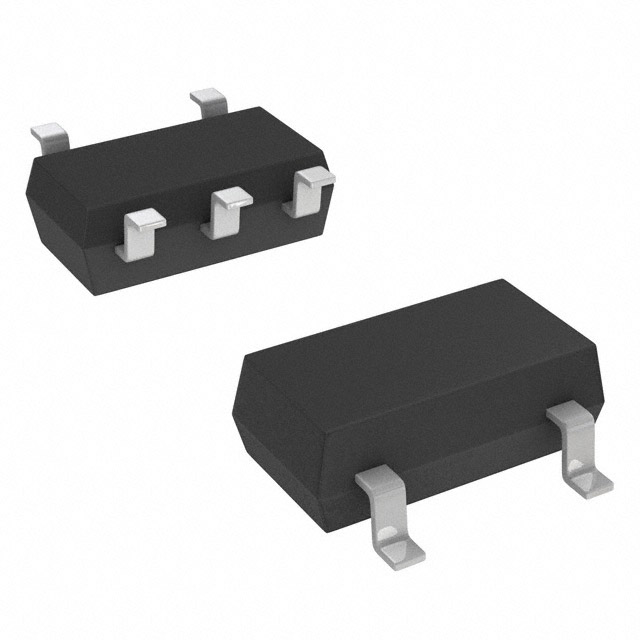

Package / Case SC-74A, SOT-753
Output Type Fixed
Mounting Type Surface Mount
Current - Output 150mA
Operating Temperature -30°C ~ 80°C
Output Configuration Positive
Current - Quiescent (Iq) 200 µA
Voltage - Input (Max) 16V
Number of Regulators 1
Supplier Device Package SOT-23-5
Voltage - Output (Min/Fixed) 3.6V
Control Features Enable
PSRR 70dB (400Hz)
Voltage Dropout (Max) 0.4V @ 150mA
Protection Features Over Current, Over Temperature

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Obsolete

This product is no longer manufactured.
