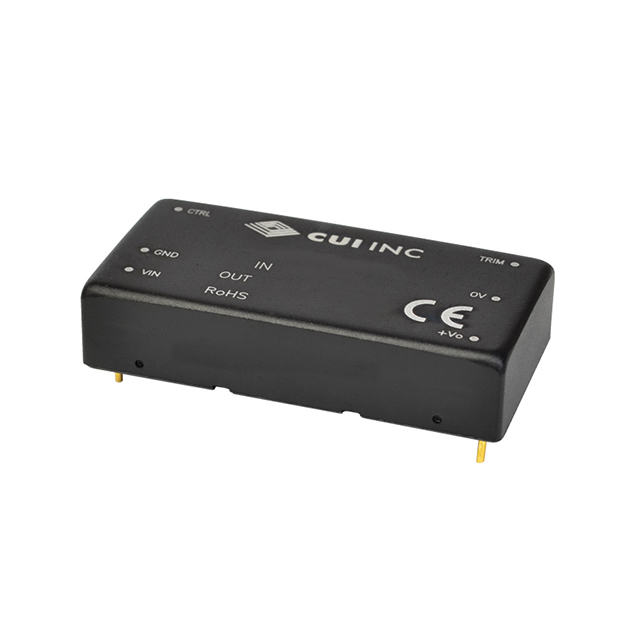

PQA30-D24-S3-D _ DC DC Converters_Power Supplies

Part Number	PQA30-D24-S3-D
Manufacturer	CUI Inc
Other Part Numbers	PQA30-D24-S3-D-ND PQA30D24S3D 2266-PQA30-D24-S3-D
Description	DC DC CONVERTER 3.3V 30W
Detailed Description	Isolated Module DC DC Converter 1 Output 3.3V 6A 18V - 36V Input

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		CUI Inc
Series		PQA30-D (30W)
Packaging		Tube
Part Status		Obsolete
Features		Remote On/Off, OCP, OVP, SCP
Package / Case		6-DIP Module
Size / Dimension		2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C
Applications		ITE (Commercial)
Voltage - Input (Max)		36V
Approval Agency		EN
Efficiency		87%
Current - Output (Max)		6A
Voltage - Input (Min)		18V
Voltage - Output 1		3.3V
Control Features		Enable, Active High
Power (Watts)		30 W
Number of Outputs		1
Voltage - Isolation		1.5 kV
Standard Number		55024

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
