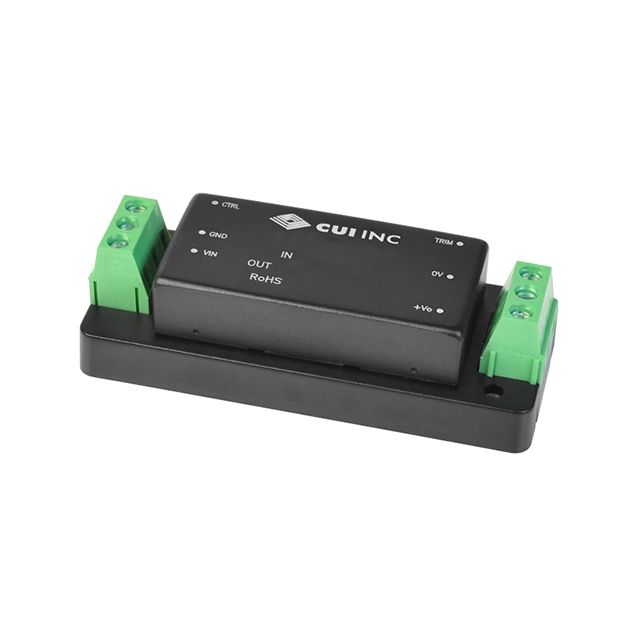

PQA30-D24-S5-T

Part Number
PQA30-D24-S5-T
Manufacturer CUI Inc
Other Part Numbers
PQA30-D24-S5-T-ND
PQA30D24S5T
Description DC/DC CONVERTER 5V 30W
Detailed Description Enclosed DC DC Converter 1 Output 5V 6A 36V Input

Product Attributes

Category
Manufacturer CUI Inc
Series
PQA30-T (30W)
Packaging
Tube
Part Status Obsolete
Power (Watts) 30W
Size / Dimension 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm)
Mounting Type Chassis Mount
Type Enclosed
Operating Temperature -40°C ~ 85°C (With Derating)
Applications ITE (Commercial)
Voltage - Input (Max) 36V
Approval Agency EN
Efficiency 86%
Current - Output (Max) 6A
Voltage - Input (Min) 18V
Voltage - Output 1 5V
Number of Outputs 1
Voltage - Isolation 1.5 kV
Standard Number 55024; 55032 Class A

Documents & Media

RESOURCE TYPE LINK
Datasheets PQA30-D24-S5-T

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.40.9580
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

Obsolete

This product is no longer manufactured.
