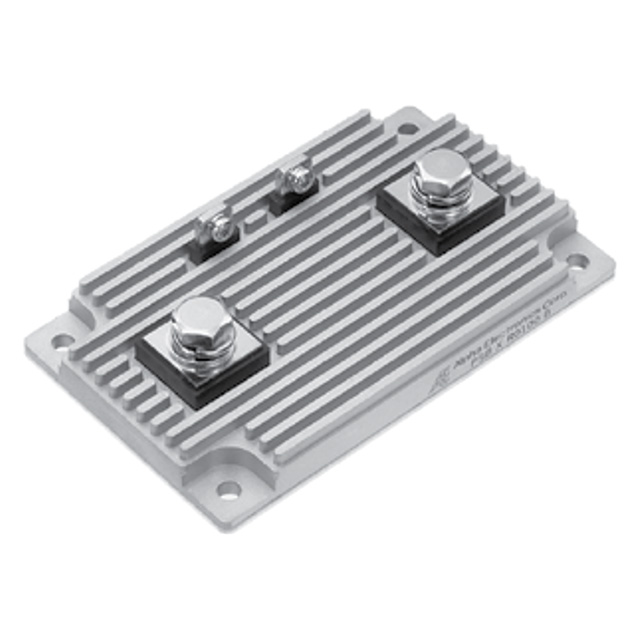

PSBWR1000F

Part Number
PSBWR1000F
Manufacturer VPG Foil Resistors
Other Part Numbers
804-PSBWR1000F-ND
804-PSBWR1000F
Description PSBWR1000F 15 PPM SHUNT
Detailed Description 100 mOhms ±1% 40W Metal Foil Chassis Mount Resistor
Manufacturer Standard Lead Time 20 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer VPG Foil Resistors
Series
PSB
Packaging
Bulk
Part Status Active
Power (Watts) 40W
Tolerance ±1%
Lead Style M3 Threaded; M6 Threaded
Features Current Sense
Package / Case Radial, Rectangular Case
Temperature Coefficient ±15ppm/°C
Size / Dimension 3.937" L x 2.362" W (100.00mm x 60.00mm)
Composition Metal Foil
Operating Temperature -55°C ~ 85°C
Mounting Feature Screw Holes
Coating, Housing Type Aluminum
Height - Seated (Max) 0.787" (20.00mm)
Resistance 100 mOhms

Documents & Media

RESOURCE TYPE LINK
Datasheets PSBWR1000F

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.29.0000
