Part Number	PSMN013-30LL,115
Manufacturer	NXP Semiconductors
Other Part Numbers	568-5307-2-ND PSMN01330LL115 568-5307-6 568-5307-2 568-5307-1 934064642115
Description	MOSFET N-CH 30V 21A 8DFN
Detailed Description	N-Channel 30 V 21A (Tc) 41W (Tc) Surface Mount 8-DFN3333 (3.3x3.3)
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		NXP Semiconductors
Series
Packaging		Tape & Reel (TR)
Part Status		Obsolete

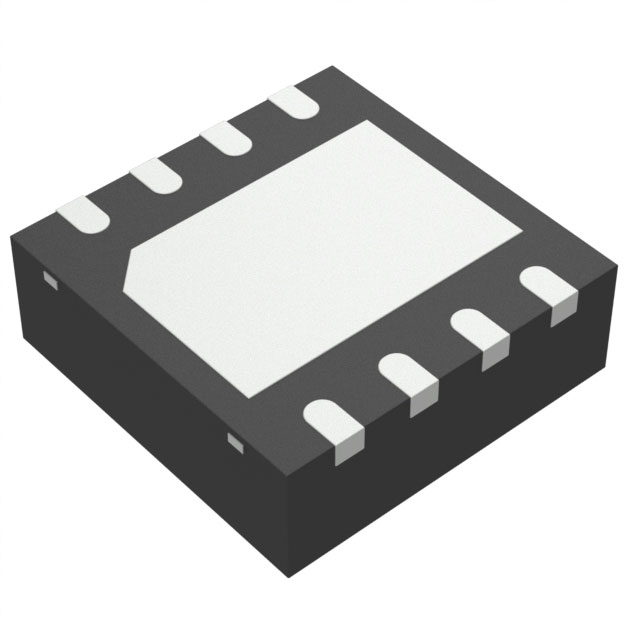

Package / Case		8-VDFN Exposed Pad
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		21A (Tc)
Rds On (Max) @ Id, Vgs		13mOhm @ 5A, 10V
Power Dissipation (Max)		41W (Tc)
Vgs(th) (Max) @ Id		2.15V @ 1mA
Supplier Device Package		8-DFN3333 (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		12.2 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		768 pF @ 15 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
