PSMN7R0-40LS,115 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	PSMN7R0-40LS,115
Manufacturer	NXP Semiconductors
Other Part Numbers	568-5595-2-ND 954-PSMN7R0-40LS115 568-5595-1 568-5595-2 PSMN7R040LS115 934064651115 568-5595-6
Description	MOSFET N-CH 40V 40A 8DFN
Detailed Description	N-Channel 40 V 40A (Tc) 65W (Tc) Surface Mount 8-DFN3333 (3.3x3.3)
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		NXP Semiconductors
Series
Packaging		Tape & Reel (TR)
Part Status		Obsolete

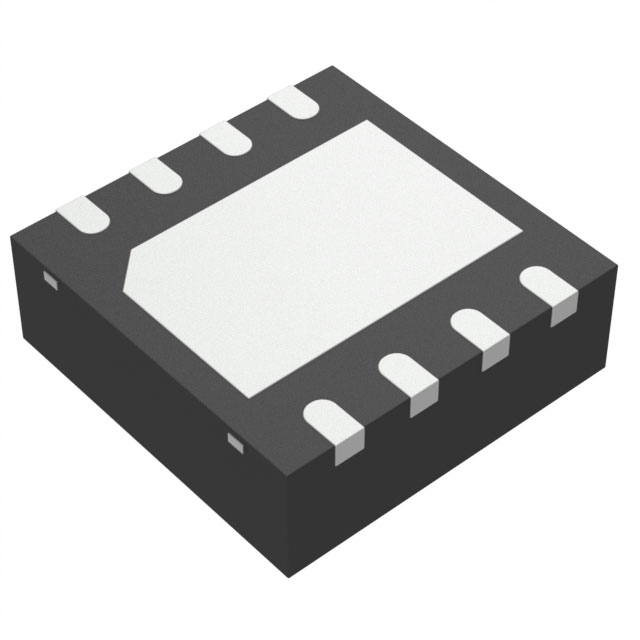

Package / Case		8-VDFN Exposed Pad
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		40A (Tc)
Rds On (Max) @ Id, Vgs		7mOhm @ 10A, 10V
Power Dissipation (Max)		65W (Tc)
Vgs(th) (Max) @ Id		4V @ 1mA
Supplier Device Package		8-DFN3333 (3.3x3.3)
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		40 V
Gate Charge (Qg) (Max) @ Vgs		21.4 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1286 pF @ 12 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
