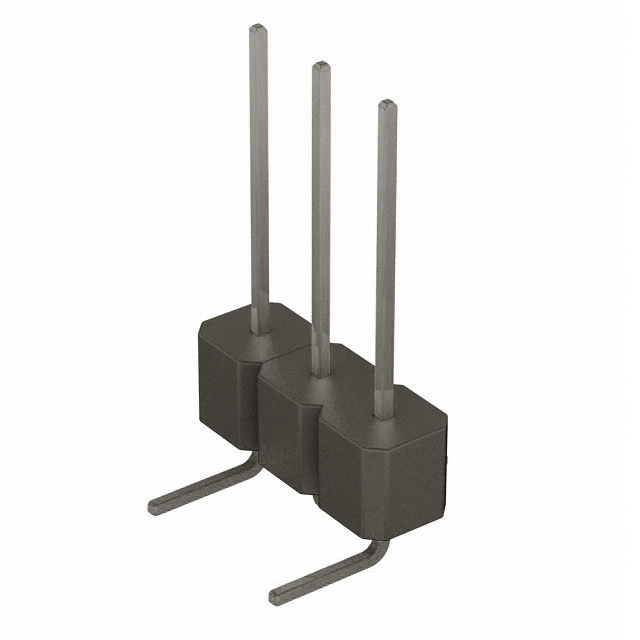

PTC03SBAN _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	PTC03SBAN
Manufacturer	Sullins Connector Solutions
Other Part Numbers	S1112-03-ND S1112-03
Description	CONN HEADER R/A 3POS 2.54MM
Detailed Description	Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Sullins Connector Solutions
Series
Packaging		Bulk
Part Status		Obsolete
Connector Type		Header
Current Rating (Amps)		3A
Mounting Type		Through Hole, Right Angle
Number of Positions		3
Number of Rows		1
Style		Board to Board or Cable
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Tin
Contact Finish Thickness - Mating		100.0µin (2.54µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		100.0µin (2.54µm)
Contact Shape		Square
Contact Length - Post		0.120" (3.05mm)
Insulation Height		0.140" (3.56mm)
Shrouding		Unshrouded
Insulation Material		Thermoplastic, Polyester
Contact Length - Mating		0.230" (5.84mm)

RESOURCE TYPE		LINK
Datasheets		PTC03SBAN
Datasheets		Sullins Connector Solutions RoHS Cert
Datasheets		Sullins Connector Solutions REACH

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
