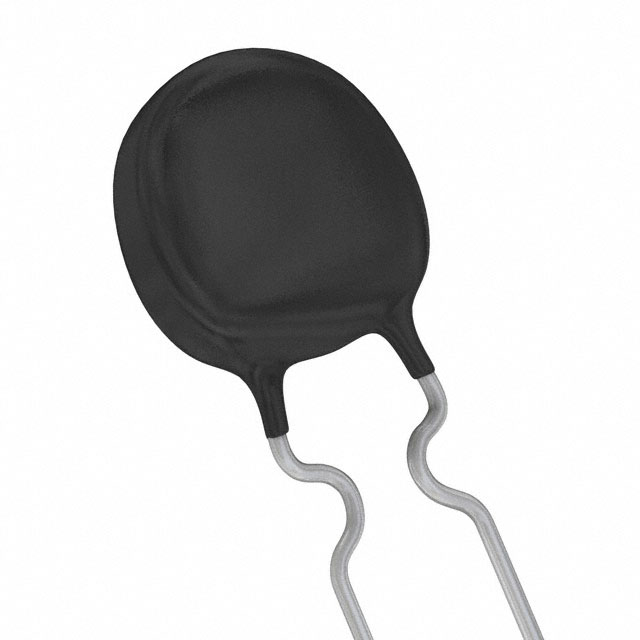

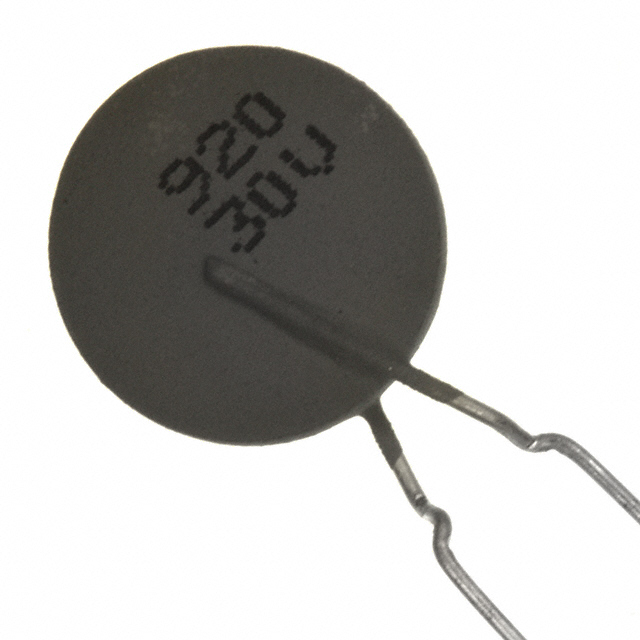

PTCCL13H921DBE

PTCCL13H921DBE

Part Number	PTCCL13H921DBE
Manufacturer	Vishay BC Components
Other Part Numbers	BC2323-ND BC2323 238166259211 2381 662 59211
Description	PTC RESET FUSE 30V 920MA RADIAL
Detailed Description	Ceramic PTC Resettable Fuse 30V 920 mA Ih Through Hole Radial, Disc
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		Vishay BC Components
Series		PTCCL - 30V
Packaging		Bulk
Part Status		Active
Package / Case		Radial, Disc
Size / Dimension		0.492" Dia x 0.157" T (12.50mm x 4.00mm)
Mounting Type		Through Hole
Type		Ceramic
Operating Temperature		-40°C ~ 85°C
Lead Spacing		0.197" (5.00mm)
Approval Agency		UR
Current - Hold (Ih) (Max)		920 mA
Current - Trip (It)		1.38 A
Voltage - Max		30V
Height - Seated (Max)		0.689" (17.50mm)
Current - Max		11 A
Resistance - 25°C (Typ)		900 mOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PTCCL13H921DBE
Datasheets		Mult Series Coating 15/Jul/2011
Datasheets		660 Series Front
Datasheets		662 Series Front
Datasheets		PTCCL Series 4.0mm Thickness Side

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.40.8070
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
