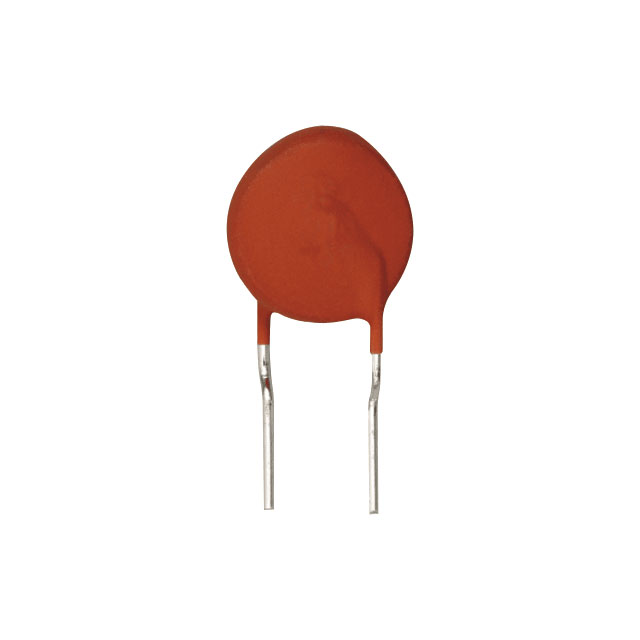

PTGL4SAS100K3B51A0

Part Number
PTGL4SAS100K3B51A0
Manufacturer TOKO / Murata
Other Part Numbers
PTGL4SAS100K3B51A0-ND
Description PTC RESET FUSE 51V 213MA RADIAL
Detailed Description Ceramic PTC Resettable Fuse 51V 213 mA Ih Through Hole Radial, Disc

Product Attributes

Category
Manufacturer TOKO / Murata
Series
POSISTOR®, PTGL
Packaging
Bulk
Part Status Obsolete
Package / Case Radial, Disc
Size / Dimension 0.177" Dia x 0.138" T (4.50mm x 3.50mm)
Mounting Type Through Hole
Type Ceramic
Operating Temperature -30°C ~ 125°C
Lead Spacing 0.197" (5.00mm)
Current - Hold (Ih) (Max) 213 mA
Current - Trip (It) 283 mA
Voltage - Max 51V
Height - Seated (Max) 0.374" (9.50mm)
Current - Max 1 A
Resistance - 25°C (Typ) 10 Ohms

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.40.8070
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
