PTGL7SARR47M1B51B0

Part Number
PTGL7SARR47M1B51B0
Manufacturer TOKO / Murata
Other Part Numbers
PTGL7SARR47M1B51B0-ND
Description PTC RESET FUSE 16V 705MA RADIAL

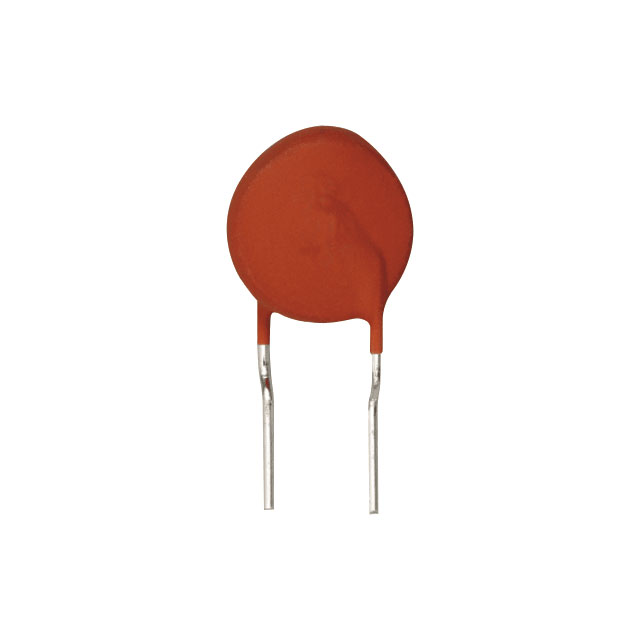

Detailed Description Ceramic PTC Resettable Fuse 16V 705 mA Ih Through Hole Radial, Disc

Product Attributes

Category
Manufacturer TOKO / Murata
Series
POSISTOR®, PTGL
Packaging
Bulk
Part Status Obsolete
Package / Case Radial, Disc
Size / Dimension 0.295" Dia x 0.138" T (7.50mm x 3.50mm)
Mounting Type Through Hole
Type Ceramic
Operating Temperature -30°C ~ 85°C
Lead Spacing 0.197" (5.00mm)
Current - Hold (Ih) (Max) 705 mA
Current - Trip (It) 1.31 A
Voltage - Max 16V
Height - Seated (Max) 0.472" (12.00mm)
Current - Max 5 A
Resistance - 25°C (Typ) 470 mOhms

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.40.8070
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
