PTGL9SAS120K6B51B0

PTGL9SAS120K6B51B0

Part Number
PTGL9SAS120K6B51B0
Manufacturer TOKO / Murata
Other Part Numbers
PTGL9SAS120K6B51B0-ND
Description PTC RESET FUSE 140V 244MA RADIAL

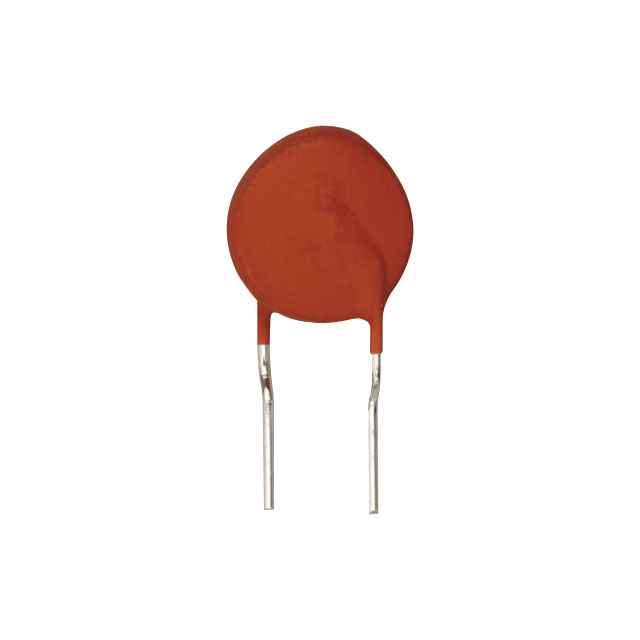

Detailed Description Ceramic PTC Resettable Fuse 140V 244 mA Ih Through Hole Radial, Disc

Product Attributes

Category
Manufacturer TOKO / Murata
Series
POSISTOR®, PTGL
Packaging
Bulk
Part Status Obsolete
Package / Case Radial, Disc
Size / Dimension 0.366" Dia x 0.177" T (9.30mm x 4.50mm)
Mounting Type Through Hole
Type Ceramic
Operating Temperature -30°C ~ 125°C
Lead Spacing 0.197" (5.00mm)
Current - Hold (Ih) (Max) 244 mA
Current - Trip (It) 324 mA
Voltage - Max 140V
Height - Seated (Max) 0.563" (14.30mm)
Current - Max 2 A
Resistance - 25°C (Typ) 12 Ohms

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.40.8070
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
