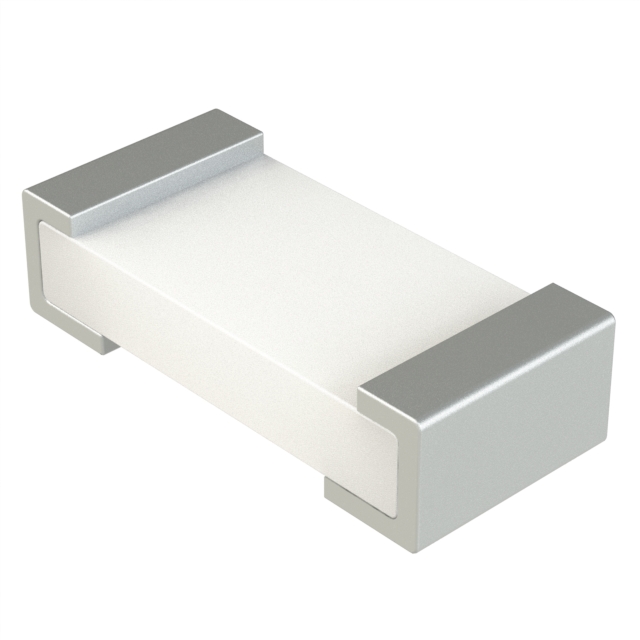

PTN0603E3572BST1

PTN0603E3572BST1

Part Number	PTN0603E3572BST1
Manufacturer	Vishay Dale / Thin Film
Other Part Numbers	764-1423-2-ND 764-1423-1-ND 764-1423-6-ND 764-1423-6 764-1423-2 764-1423-1
Description	RES 35.7K OHM 0.1% 0.15W 0603
Detailed Description	35.7 kOhms ±0.1% 0.15W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Moisture Resistant, Non-Inductive Thin Film
Manufacturer Standard Lead Time	67 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		Vishay Dale / Thin Film
Series		PTN
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Power (Watts)		0.15W
Tolerance		±0.1%
Features		Anti-Sulfur, Moisture Resistant, Non-Inductive
Package / Case		0603 (1608 Metric)
Temperature Coefficient		±25ppm/°C
Size / Dimension		0.064" L x 0.032" W (1.63mm x 0.81mm)
Composition		Thin Film
Operating Temperature		-55°C ~ 155°C
Number of Terminations		2
Supplier Device Package		0603
Height - Seated (Max)		0.020" (0.51mm)
Resistance		35.7 kOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PTN0603E3572BST1

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1006

Can ship immediately.
