Part Number | PV6F240SS-301-M01 |
---|---|
Manufacturer | E-Switch |
Other Part Numbers | 141-PV6F240SS-301-M01-ND 52-PV6F240SS301M01 141-PV6F240SS-301-M01 |
Description | SWITCH PB SPST-NO 2A 48V |

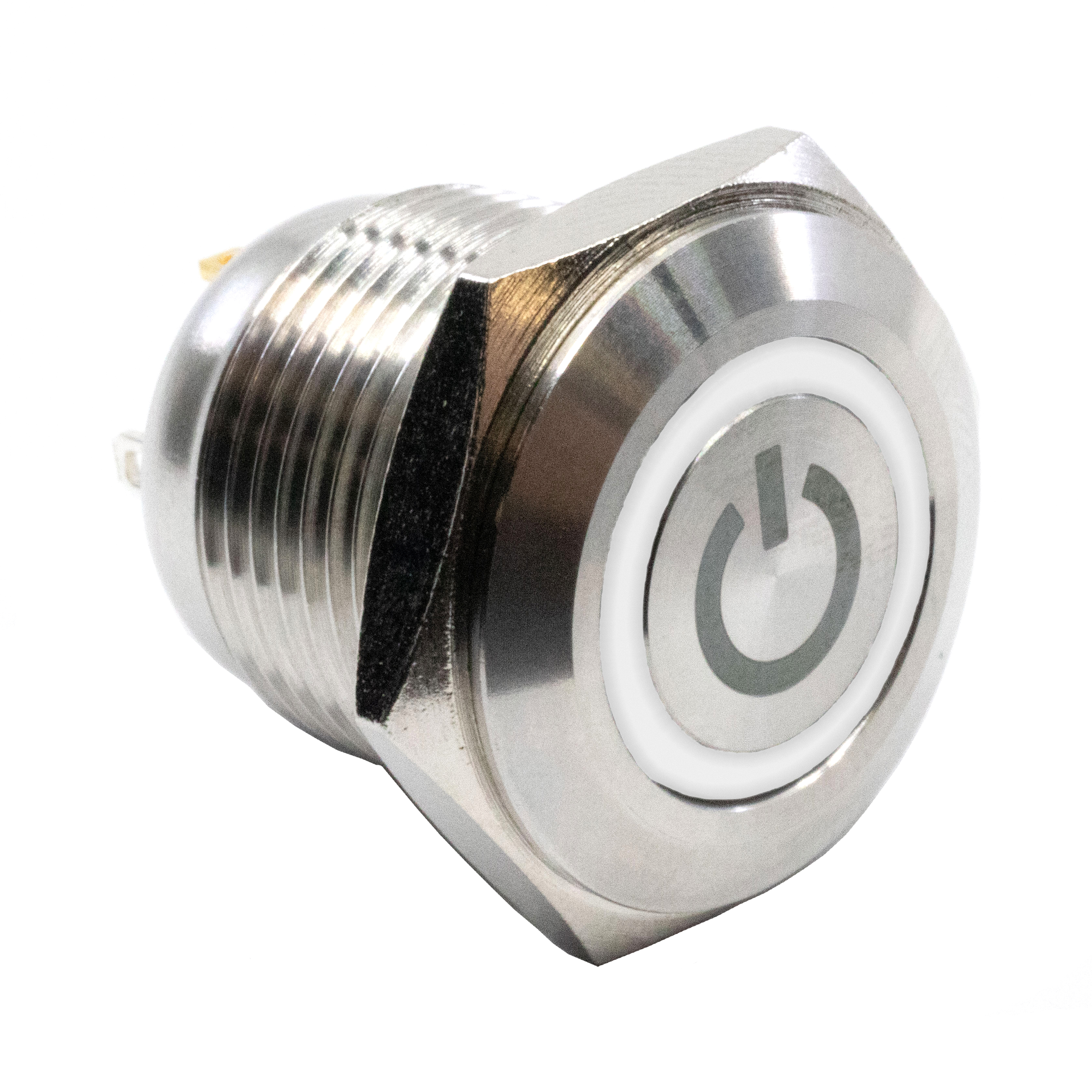

Detailed Description | Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front |
Manufacturer Standard Lead Time | 13 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | E-Switch | |
Series | PV6, LAMB | |
Packaging | Bulk | |
Part Status | Active | |
Current Rating (Amps) | 2A (DC) | |
Mounting Type | Panel Mount, Front | |
Circuit | SPST-NO | |
Type | Anti-Vandal, Illuminated | |
Switch Function | Off-Mom | |
Operating Temperature | -20°C ~ 55°C | |
Termination Style | Solder Lug | |
Illumination Type, Color | LED, White | |
Illumination Voltage (Nominal) | 2.8 VDC | |
Actuator Type | Round, Button, Flush | |
Ingress Protection | IP65 - Dust Tight, Water Resistant | |
Panel Cutout Dimensions | Circular - 16.00mm Dia | |
Color - Actuator/Cap | Silver | |
Voltage Rating - DC | 48 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | PV6F240SS-301-M01 | |
Datasheets | PV6F240SS-301-M01 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.50.9031 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
40 | $13.29 | $531.60 |
