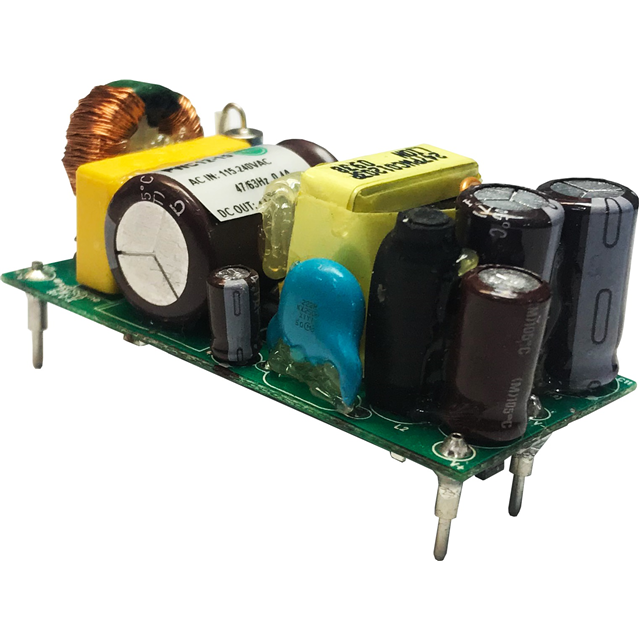

PWC12-3.3 _ AC DC Converters_Power Supplies

Part Number	PWC12-3.3
Manufacturer	Astrodyne TDI
Other Part Numbers	2622-PWC12-3.3-ND 3109-PWC12-3.3 2622-PWC12-3.3 3109-PWC12-3.3-ND
Description	AC/DC CONVERTER 3.3V 12W
Detailed Description	Open Frame AC DC Converters 1 Output 3.3V 3.01A 90 ~ 264 VAC Input
Datasheet	Datasheet

Category		Power Supplies - Board Mount AC DC Converters
Manufacturer		Astrodyne TDI
Series		PWC12 (12W)
Packaging		Box
Part Status		Active
Features		Universal Input
Package / Case		4-DIP Module
Size / Dimension		2.06" L x 1.07" W x 0.91" H (52.3mm x 27.2mm x 23.0mm)
Mounting Type		Through Hole
Voltage - Input		90 ~ 264 VAC
Type		Open Frame
Operating Temperature		-20°C ~ 70°C (With Derating)
Applications		ITE (Commercial), Medical
Approval Agency		CE, cURus, UL
Efficiency		77%
Current - Output (Max)		3.01A
Load Regulation		1%
Line Regulation		0.5%
Voltage - Output 1		3.3V
Power (Watts)		12 W
Number of Outputs		1
Standard Number		60601-1; 60950-1

RESOURCE TYPE		LINK
Datasheets		PWC12-3.3

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9510
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
