Q-2P03L0005003I

Q-2P03L0005003I

Part Number
Q-2P03L0005003I
Manufacturer Amphenol Custom Cable
Other Part Numbers
2217-Q-2P03L0005003I-ND
2217-Q-2P03L0005003I

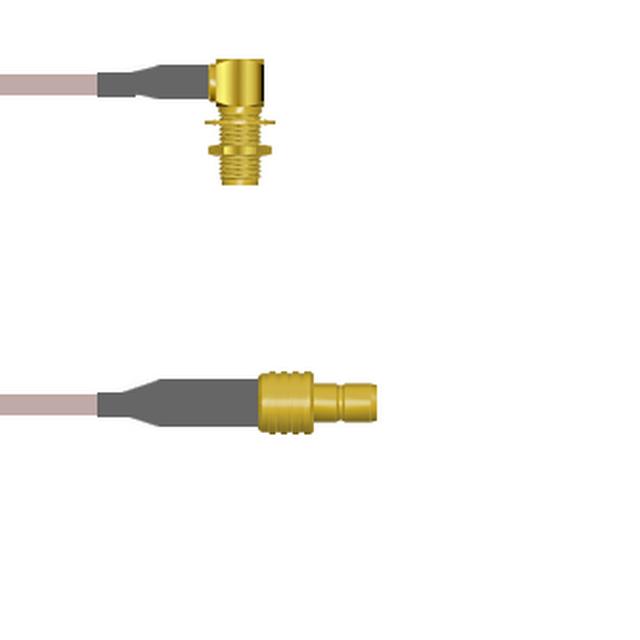

Description CBL ASSY SMA-SMB JACK-JACK 3"
Detailed Description Cable Assembly Coaxial SMA to SMB RG-316 3.000" (76.20mm)

Product Attributes

Category
Manufacturer Amphenol Custom Cable
Series
Packaging
Bag
Part Status Active
Features Shielded
Color Copper
Length 3.000" (76.20mm)
Style SMA to SMB
Cable Type RG-316
1st Connector SMA Jack, Right Angle
2nd Connector SMB Jack
Frequency - Max 3 GHz
1st Connector Mounting Type Panel Mount
2nd Connector Mounting Type Free Hanging (In-Line)
1st Contact Gender Female
2nd Contact Gender Male
Cable Impedance 50 Ohms
Connector Impedance 50 Ohms
Overall Impedance 50 Ohms
1st Connector Mounting Feature Bulkhead - Front Side Nut

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8544.20.0000
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
Bag 1 $81.36 $81.36
Total Amount: $81.36

Bag

QUANTITY UNIT PRICE EXT PRICE
1 $81.36 $81.36
25 $75.78 $1,894.50
50 $70.20 $3,510.00
100 $65.42 $6,542.00
250 $61.43 $15,357.50
