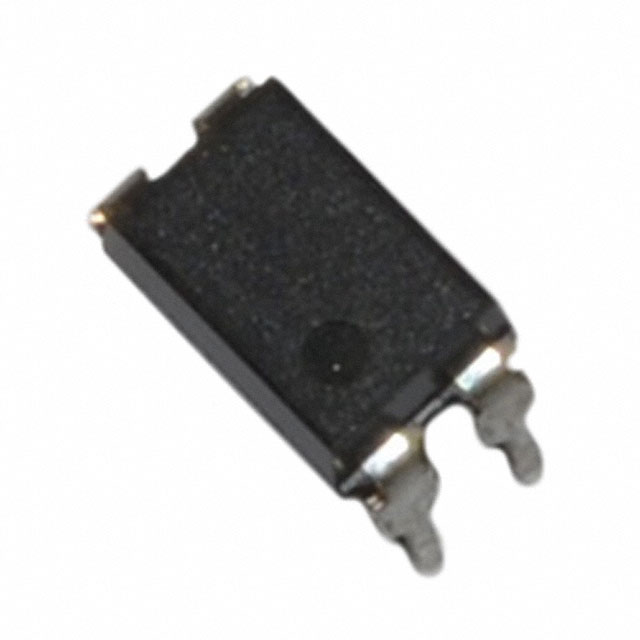

Q817 _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	Q817
Manufacturer	QT Brightek
Other Part Numbers	1516-1019-ND 1516-1019
Description	OPTOCPLR DC-INPUT 1.2V 4DIP
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Manufacturer Standard Lead Time	30 weeks

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		QT Brightek
Series		Q817
Packaging		Tube
Part Status		Active
Package / Case		4-DIP (0.300", 7.62mm)
Output Type		Transistor
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		50% @ 5mA
Vce Saturation (Max)		200mV
Current Transfer Ratio (Max)		600% @ 5mA
Supplier Device Package		4-DIP
Voltage - Output (Max)		80V
Rise / Fall Time (Typ)		6µs, 8µs
Number of Channels		1
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		2A (4 Weeks)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
