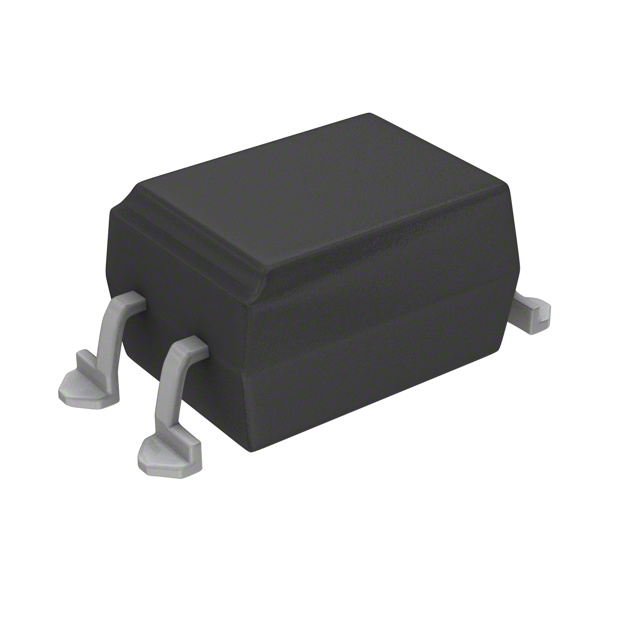

Q817CST1 _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	Q817CST1
Manufacturer	QT Brightek
Other Part Numbers	1516-1384-2-ND 1516-1384-1-ND 1516-1384-6-ND 1516-1384-1 1516-1384-2 1516-1384-6
Description	SMD 4PIN DC INPUT PHOTOTRANSISTO
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		QT Brightek
Series		Q817
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.24V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		200% @ 5mA
Vce Saturation (Max)		200mV
Current Transfer Ratio (Max)		400% @ 5mA
Supplier Device Package		4-SMD
Voltage - Output (Max)		35V
Rise / Fall Time (Typ)		6µs, 8µs
Number of Channels		1
Current - DC Forward (If) (Max)		60 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
