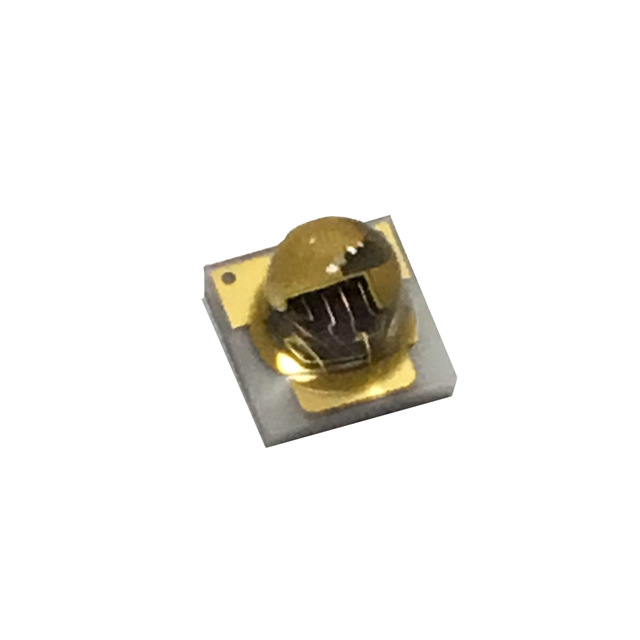

QBHP684-IR3AU

QBHP684-IR3AU

Part Number	QBHP684-IR3AU
Manufacturer	QT Brightek
Other Part Numbers	1516-1211-2-ND 1516-1211-1-ND 1516-1211-6-ND 1516-1211-1 1516-1211-2 1516-1211-6
Description	LED IR 850NM 700MA SMD
Detailed Description	Infrared (IR) Emitter 850nm 1.9V 700mA 60° 2-SMD, No Lead Exposed Pad
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Emitters - Infrared, UV, Visible
Manufacturer		QT Brightek
Series		High Power
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD, No Lead Exposed Pad
Wavelength		850nm
Mounting Type		Surface Mount
Type		Infrared (IR)
Orientation		Top View
Operating Temperature		-40°C ~ 85°C (TA)
Voltage - Forward (Vf) (Typ)		1.9V
Viewing Angle		60°
Current - DC Forward (If) (Max)		700mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		QBHP684-IR3AU
Datasheets		RoHS 2 Declaration of Conformity

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
