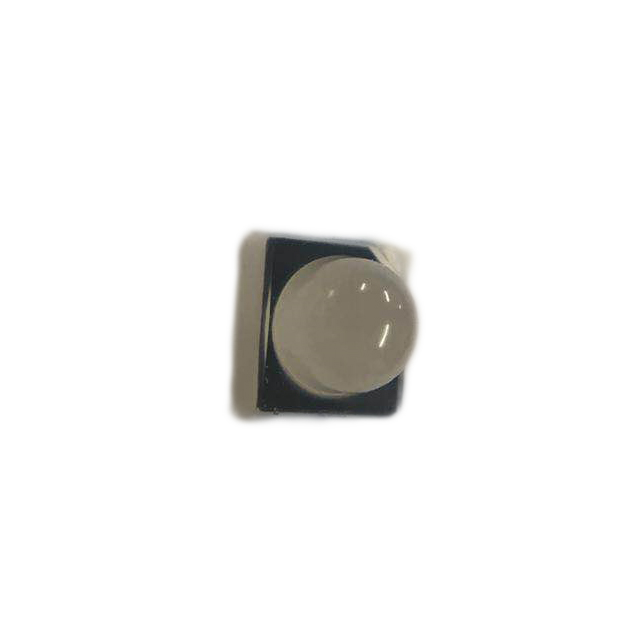

QBLP677AD-RGB2 _ LED Indication - Discrete_Optoelectronics

Part Number	QBLP677AD-RGB2
Manufacturer	QT Brightek
Other Part Numbers	1516-QBLP677AD-RGB2TR-ND 1516-QBLP677AD-RGB2CT-ND 1516-QBLP677AD-RGB2DKR-ND 1516-QBLP677AD-RGB2DKR 1516-QBLP677AD-RGB2TR 1516-QBLP677AD-RGB2CT
Description	LED RGB DIFFUSED 4PLCC SMD
Detailed Description	Red, Green, Blue (RGB) 620nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 2V Red, 2.8V Green, 3.1V Blue 4-SMD, J-Lead
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Optoelectronics LED Indication - Discrete
Manufacturer		QT Brightek
Series		QBLP677
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, J-Lead
Color		Red, Green, Blue (RGB)
Size / Dimension		3.20mm L x 2.70mm W
Mounting Type		Surface Mount
Millicandela Rating		760mcd Red, 2340mcd Green, 300mcd Blue
Configuration		Common Anode
Voltage - Forward (Vf) (Typ)		2V Red, 2.8V Green, 3.1V Blue
Lens Color		White
Current - Test		20mA Red, 20mA Green, 20mA Blue
Viewing Angle		30°
Height (Max)		3.60mm
Wavelength - Dominant		620nm Red, 525nm Green, 465nm Blue
Supplier Device Package		4-PLCC
Lens Transparency		Diffused
Lens Style		Round with Domed Top
Lens Size		2.40mm Dia

RESOURCE TYPE		LINK
Datasheets		QBLP677AD-RGB2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
