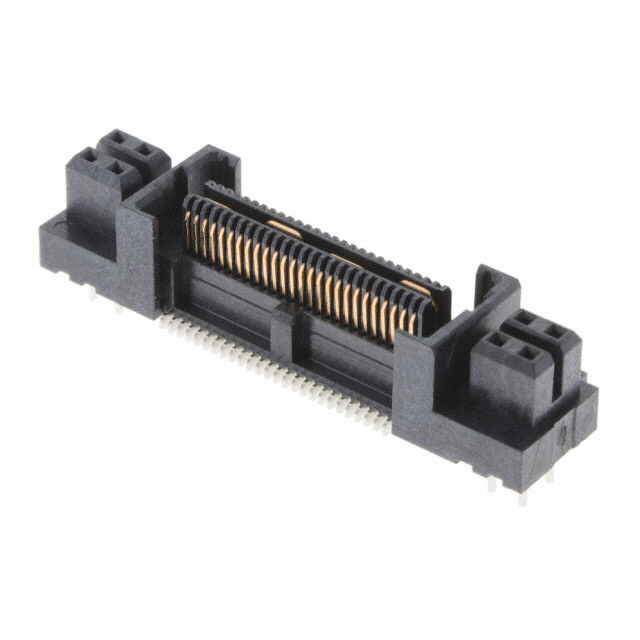

QFS-026-04.25-L-D-PT4

QFS-026-04.25-L-D-PT4

Part Number	QFS-026-04.25-L-D-PT4
Manufacturer	Samtec, Inc.
Other Part Numbers	SAM15508-ND QFS-026-04.25-L-D-PT4-ND SAM15508
Description	CONN RCPT 52POS SMD GOLD
Detailed Description	60 (52 + 8 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		Samtec, Inc.
Series		Power Q2™ QFS
Packaging		Tray
Part Status		Active
Features		Ground Bus (Plane), Power Pins (8)
Connector Type		Receptacle, Center Strip Contacts
Contact Finish		Gold
Mounting Type		Surface Mount
Number of Positions		60 (52 + 8 Power)
Pitch		0.025" (0.64mm)
Height Above Board		0.278" (7.06mm)
Contact Finish Thickness		10.0µin (0.25µm)
Mated Stacking Heights		10mm, 11mm, 14mm
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		QFS-026-04.25-L-D-PT4

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 238

Can ship immediately.
