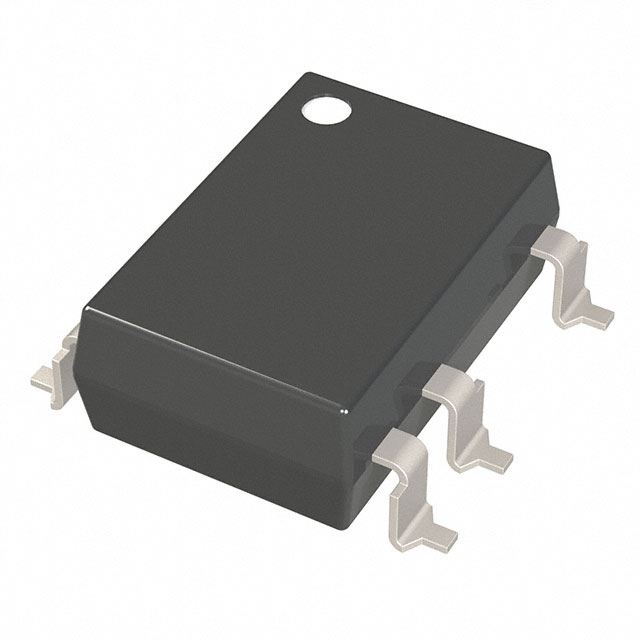

QTT0223ST1 _ Triac, SCR Output Optoisolators_Optoisolators_Isolators

Part Number	QTT0223ST1
Manufacturer	QT Brightek
Other Part Numbers	1516-1329-2-ND 1516-1329-1-ND QTT0223 1516-1329-6-ND 1516-1329-6 1516-1329-6INACTIVE 1516-1329-2 1516-1329-1
Description	7 PIN RANDOM-PHASE HIGH POWER TR
Detailed Description	Optoisolator Triac, Power Output 5000Vrms 1 Channel 7-SMD
Manufacturer Standard Lead Time	40 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Triac, SCR Output Optoisolators
Manufacturer		QT Brightek
Series		QTX223
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		8-SMD (7 Leads), Gull Wing
Output Type		Triac, Power
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 85°C
Voltage - Forward (Vf) (Typ)		1.3V (Max)
Voltage - Isolation		5000Vrms
Approval Agency		UL, VDE
Current - Hold (Ih)		25mA
Supplier Device Package		7-SMD
Zero Crossing Circuit		No
Static dV/dt (Min)		200V/µs
Current - LED Trigger (Ift) (Max)		10mA
Number of Channels		1
Current - On State (It (RMS)) (Max)		300 mA
Voltage - Off State		600 V
Current - DC Forward (If) (Max)		50 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
