R113426000 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	R113426000
Manufacturer	Radiall USA, Inc.
Other Part Numbers	2201-R113426000-ND R113.426.000 2201-R113426000
Description	MCX F STR SMT C100

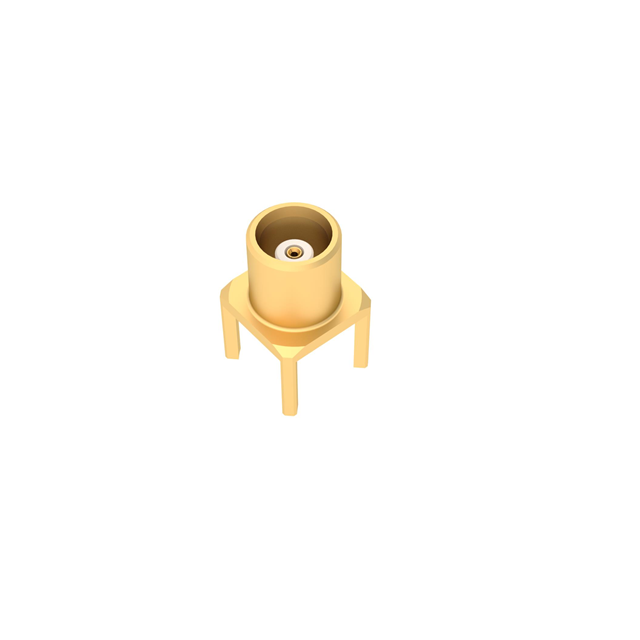

Detailed Description	MCX Connector Jack, Female Socket 50 Ohms Through Hole Solder
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Radiall USA, Inc.
Series
Packaging		Bulk
Part Status		Active
Connector Type		Jack, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 155°C
Fastening Type		Snap-On
Connector Style		MCX
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Beryllium Copper, Brass
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		6 GHz
Number of Ports		1
Voltage Rating		335 V

RESOURCE TYPE		LINK
Datasheets		R113426000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
