R2520-16.000-10-1020-EXT-TR

R2520-16.000-10-1020-EXT-TR

Part Number	R2520-16.000-10-1020-EXT-TR
Manufacturer	Raltron
Other Part Numbers	2151-R2520-16.000-10-1020-EXT-TR-ND 2151-R2520-16.000-10-1020-EXT-TRCT-ND 2151-R2520-16.000-10-1020-EXT-TRDKR-ND 2151-R2520-16.000-10-1020-EXT-TR 2151-R2520-16.000-10-1020-EXT-TRCT -2344-R2520-16.000-10-1020-EXT-TR-ND -2344-R2520-16.000-10-1020-EXT-CT-ND -2344-R2520-16.000-10-1020-EXT-TRCT -2344-R2520-16.000-10-1020-EXT-TR 2151-R2520-16.000-10-1020-EXT-TRDKR

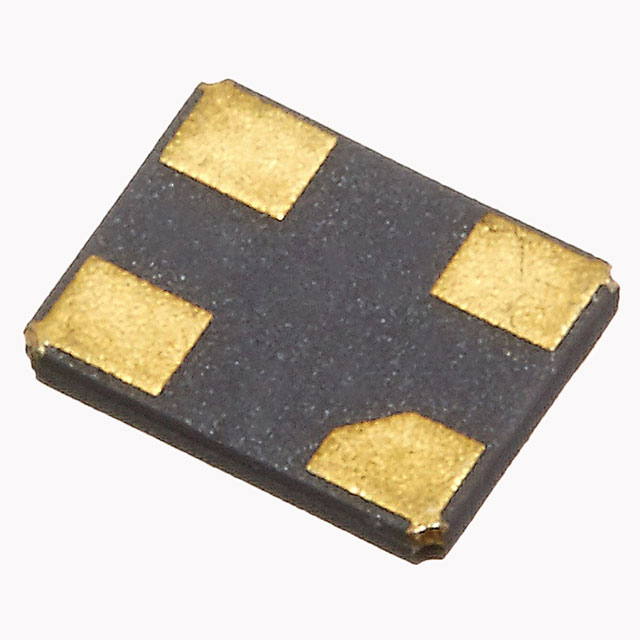

Description	CRYSTAL 16.0000MHZ 10PF SMD
Detailed Description	16 MHz ±10ppm Crystal 10pF 150 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		R2520
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		10pF
Size / Dimension		0.098" L x 0.079" W (2.50mm x 2.00mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±20ppm
Frequency Tolerance		±10ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.026" (0.65mm)
ESR (Equivalent Series Resistance)		150 Ohms
Frequency		16 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		R2520-16.000-10-1020-EXT-TR
Datasheets		R2520 Series Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2495

Can ship immediately.
