R2520-25.000-10-F-2020-TR-NS3

R2520-25.000-10-F-2020-TR-NS3

Part Number	R2520-25.000-10-F-2020-TR-NS3
Manufacturer	Raltron
Other Part Numbers	2151-R2520-25.000-10-F-2020-TR-NS3TR-ND 2151-R2520-25.000-10-F-2020-TR-NS3CT-ND 2151-R2520-25.000-10-F-2020-TR-NS3DKR-ND 2151-R2520-25.000-10-F-2020-TR-NS3TR 2151-R2520-25.000-10-F-2020-TR-NS3CT 2151-R2520-25.000-10-F-2020-TR-NS3DKR

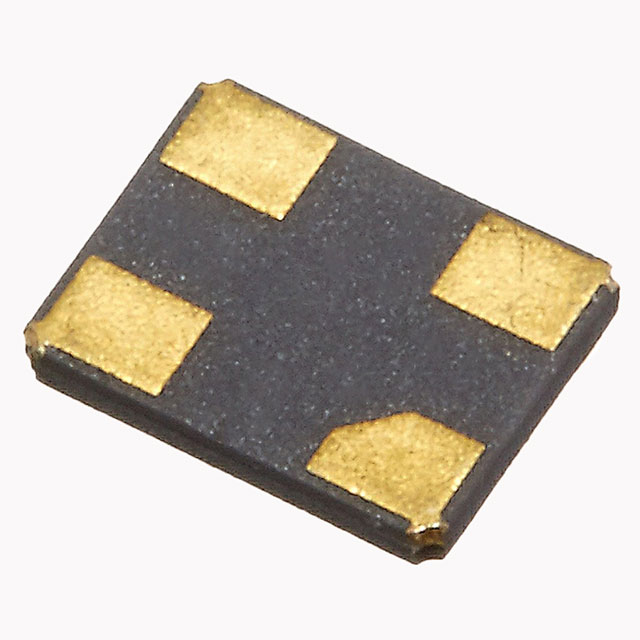

Description	CRYSTAL 25.0000MHZ 10PF SMD
Detailed Description	25 MHz ±20ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		R2520
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		10pF
Size / Dimension		0.098" L x 0.079" W (2.50mm x 2.00mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-10°C ~ 60°C
Frequency Stability		±20ppm
Frequency Tolerance		±20ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.026" (0.65mm)
ESR (Equivalent Series Resistance)		100 Ohms
Frequency		25 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		R2520-25.000-10-F-2020-TR-NS3
Datasheets		R2520 Series Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2237

Can ship immediately.
