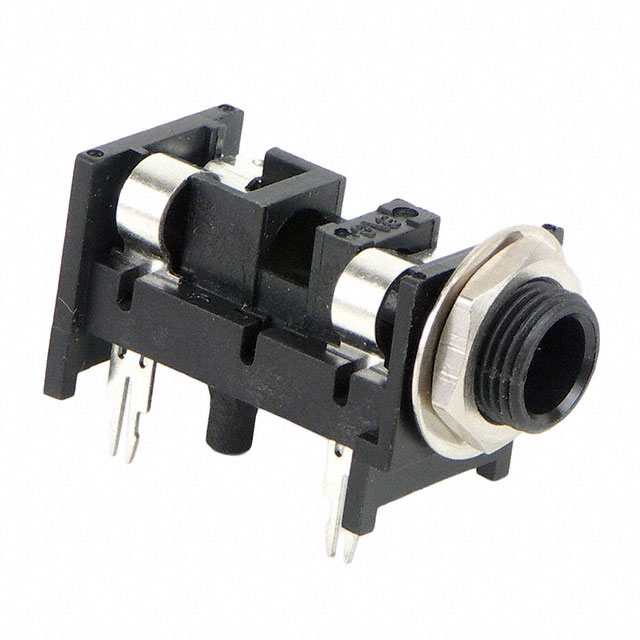

RA49B11 _ Audio Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	RA49B11
Manufacturer	Switchcraft / Conxall
Other Part Numbers	SC2546-ND RA49B11-ND SC2546
Description	CONN JACK MONO 6.35MM R/A
Detailed Description	6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Audio Connectors
Manufacturer		Switchcraft / Conxall
Series		RA Jax®
Packaging		Bulk
Part Status		Active
Features		Board Guide
Connector Type		Phone Jack
Gender		Female
Mounting Type		Through Hole, Right Angle
Shielding		Unshielded
Thread Size		3/8"-32
Number of Positions/Contacts		2 Conductors, 2 Contacts
Internal Switch(s)		Does Not Contain Switch
Signal Lines		Mono
Termination		Solder
Includes		3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Material		Copper Alloy
Housing Material		Thermoplastic, Polyester
Body Color		Black
Contact Material - Plating		Silver
Actual Diameter		0.253" (6.43mm)
Industry Recognized Mating Diameter		6.35mm (0.250", 1/4") - Headphone

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
