RDM-MBF5-A-5048-1M-X-001

RDM-MBF5-A-5048-1M-X-001

Part Number	RDM-MBF5-A-5048-1M-X-001
Manufacturer	Raltron
Other Part Numbers	2151-RDM-MBF5-A-5048-1M-X-001-ND 2151-RDM-MBF5-A-5048-1M-X-001

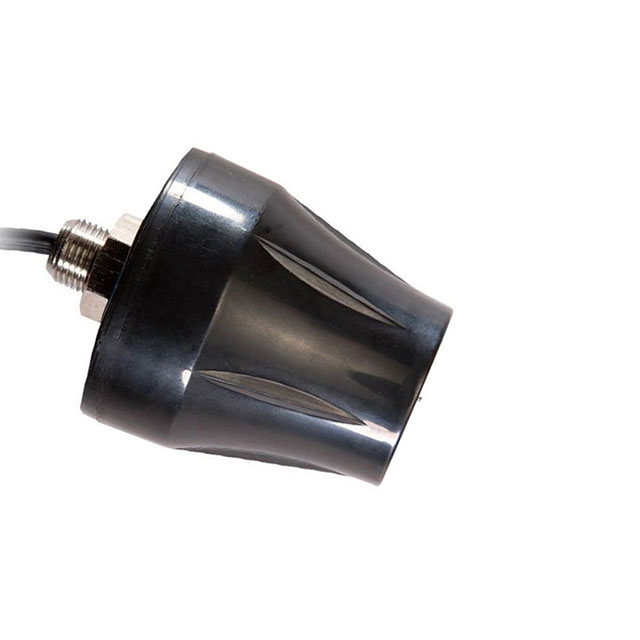

Description	RF ANT 850MHZ/868MHZ DOME RP-SMA
Detailed Description	850MHz, 868MHz, 900MHz, 915MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz Cellular, GSM, GPS, LNA Dome RF Antenna 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz 2dBi, 2dBi RP-SMA Male (2) Screw
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Raltron
Series		RDM
Packaging		Bulk
Part Status		Active
Mounting Type		Screw
Frequency Range		824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz
Applications		Cellular, GSM, GPS, LNA
Gain		2dBi, 2dBi
Termination		RP-SMA Male (2)
Ingress Protection		IP66, IP67
Number of Bands		2
VSWR		1.5, 2
Antenna Type		Dome
Height (Max)		1.889" (48.00mm)
Frequency Group		Wide Band
Frequency (Center/Band)		850MHz, 868MHz, 900MHz, 915MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz
RF Family/Standard		Cellular, Navigation

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RDM-MBF5-A-5048-1M-X-001

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		7A994
HTSUS		8529.10.9100
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
