RFMTA340745IMAB701

RFMTA340745IMAB701

Part Number	RFMTA340745IMAB701
Manufacturer	Walsin Technology
Other Part Numbers	1292-1100-ND 1292-1100

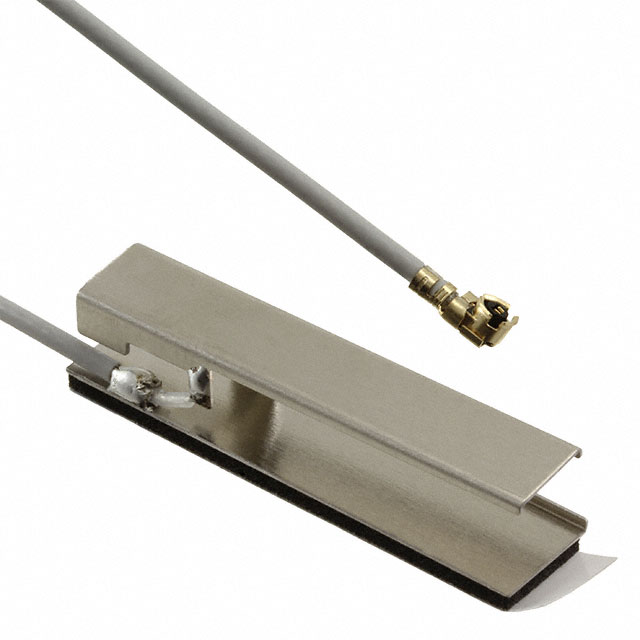

Description	RF ANT 2.4GHZ STAMPED MET IPEX
Detailed Description	2.4GHz ISM Stamped Metal RF Antenna 2.4GHz ~ 2.5GHz 3.4dBi U.FL (UMCC), IPEX MHF1 Adhesive
Manufacturer Standard Lead Time	26 weeks

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Walsin Technology
Series
Packaging		Bulk
Part Status		Active
Mounting Type		Adhesive
Frequency Range		2.4GHz ~ 2.5GHz
Applications		ISM
Gain		3.4dBi
Termination		U.FL (UMCC), IPEX MHF1
Number of Bands		1
VSWR		2
Antenna Type		Stamped Metal
Height (Max)		0.236" (6.00mm)
Return Loss		-10dB
Frequency Group		UHF (2GHz ~ 3GHz)
Frequency (Center/Band)		2.4GHz
RF Family/Standard		General ISM
Power - Max		1 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RFMTA340745IMAB701
Datasheets		Walsin Technology Corporation RoHS/REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1862

Can ship immediately.
