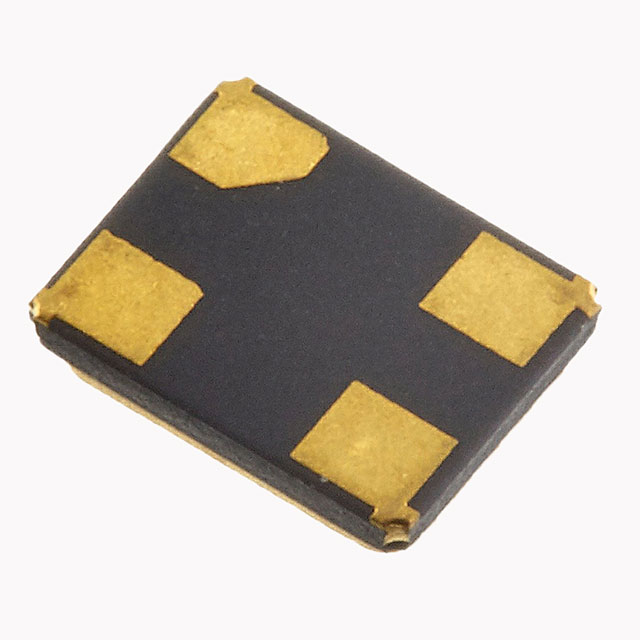

RH100-16.000-12-1010-EXT-TR

RH100-16.000-12-1010-EXT-TR

Part Number	RH100-16.000-12-1010-EXT-TR
Manufacturer	Raltron
Other Part Numbers	2151-RH100-16.000-12-1010-EXT-TR-ND 2151-RH100-16.000-12-1010-EXT-TRCT-ND 2151-RH100-16.000-12-1010-EXT-TRDKR-ND 2151-RH100-16.000-12-1010-EXT-TRCT 2151-RH100-16.000-12-1010-EXT-TRDKR 2151-RH100-16.000-12-1010-EXT-TR
Description	CRYSTAL 16.0000MHZ 12PF SMD
Detailed Description	16 MHz ±10ppm Crystal 12pF 70 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		RH100
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		12pF
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±10ppm
Frequency Tolerance		±10ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.031" (0.80mm)
ESR (Equivalent Series Resistance)		70 Ohms
Frequency		16 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RH100-16.000-12-1010-EXT-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 8472

Can ship immediately.
