RH100-30.000-20-F-2020-TR-NS1

RH100-30.000-20-F-2020-TR-NS1

Part Number	RH100-30.000-20-F-2020-TR-NS1
Manufacturer	Raltron
Other Part Numbers	2151-RH100-30.000-20-F-2020-TR-NS1TR-ND 2151-RH100-30.000-20-F-2020-TR-NS1CT-ND 2151-RH100-30.000-20-F-2020-TR-NS1DKR-ND 2151-RH100-30.000-20-F-2020-TR-NS1DKR 2151-RH100-30.000-20-F-2020-TR-NS1TR 2151-RH100-30.000-20-F-2020-TR-NS1CT -2344-RH100-30.000-20-F-2020-TR-NS1CT 2151-RH100-30.000-20-F-2020-TR-NS1 2151-RH100-30.000-20-F-2020-TR-NS1-ND

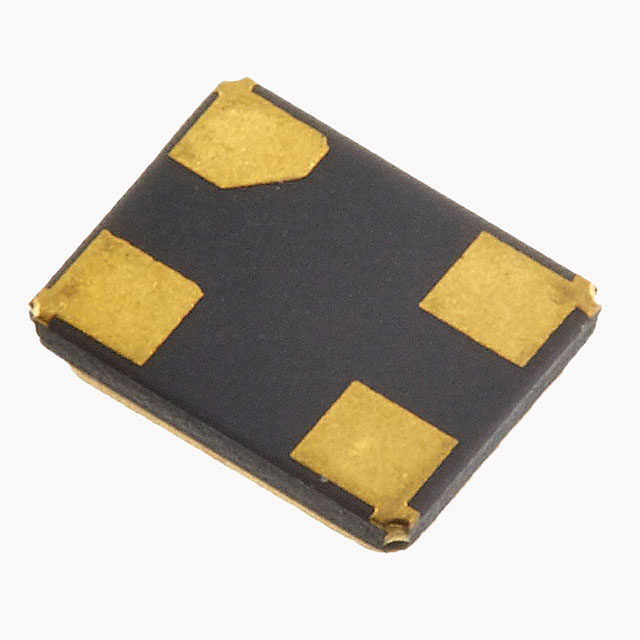

Description	CRYSTAL 30.0000MHZ 20PF SMD
Detailed Description	30 MHz ±20ppm Crystal 20pF 50 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		RH100
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		20pF
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±20ppm
Frequency Tolerance		±20ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.031" (0.80mm)
ESR (Equivalent Series Resistance)		50 Ohms
Frequency		30 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RH100-30.000-20-F-2020-TR-NS1

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
