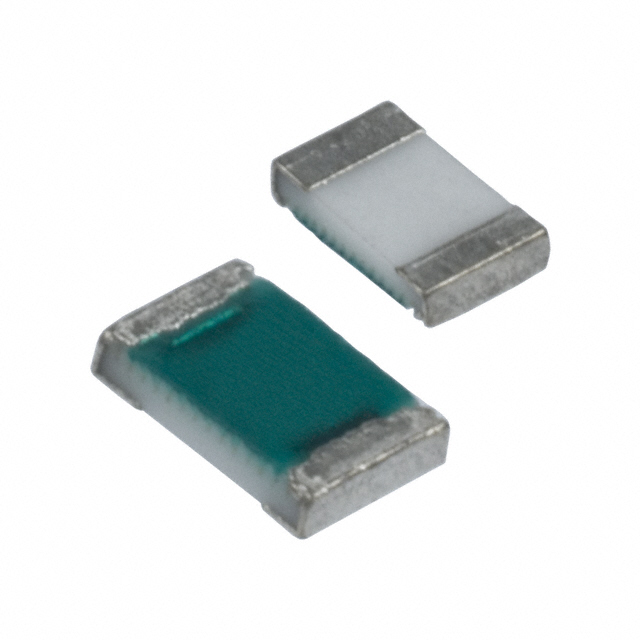

RL1220S-R24-F

RL1220S-R24-F

Part Number	RL1220S-R24-F
Manufacturer	Susumu
Other Part Numbers	RL12S.24FTR-ND RL12S.24FCT-ND RL12S.24FDKR-ND RL12S.24FDKR RL1220SR24F RL12S.24FTR RL12S.24FCT
Description	RES 0.24 OHM 1% 1/3W 0805
Detailed Description	240 mOhms ±1% 0.333W, 1/3W Chip Resistor 0805 (2012 Metric) Current Sense Thin Film
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		Susumu
Series		RL
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Power (Watts)		0.333W, 1/3W
Tolerance		±1%
Features		Current Sense
Package / Case		0805 (2012 Metric)
Temperature Coefficient		0/ +200ppm/°C
Size / Dimension		0.079" L x 0.049" W (2.00mm x 1.25mm)
Composition		Thin Film
Operating Temperature		-55°C ~ 125°C
Number of Terminations		2
Supplier Device Package		0805
Height - Seated (Max)		0.020" (0.50mm)
Resistance		240 mOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RL1220S-R24-F
Datasheets		Susumu RoHS Series Listed

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 103853

Can ship immediately.
