RP13A-12PS-20SC(71) _ Circular Connector Housings_Circular Connectors_Connectors, Interconnects

Part Number	RP13A-12PS-20SC(71)
Manufacturer	Hirose Electric Co., Ltd.
Other Part Numbers	HR1283-ND RP13A12PS20SC71 HR1283 113-1022-3-71 *RP13A-12PS-20SC(71)
Description	CONN PLG HSG FMALE 20POS INLINE
Detailed Description	20 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Strain Relief
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Housings
Manufacturer		Hirose Electric Co., Ltd.
Series		RP13A
Packaging		Bulk
Part Status		Active
Features		Backshell, Cable Clamp, Strain Relief
Connector Type		Plug Housing
Mounting Type		Free Hanging (In-Line)
Shielding		Unshielded
Number of Positions		20
Type		For Female Sockets
Orientation		Keyed
Shell Size - Insert		12
Operating Temperature		-10°C ~ 60°C
Contact Type		Crimp
Fastening Type		Push-Pull

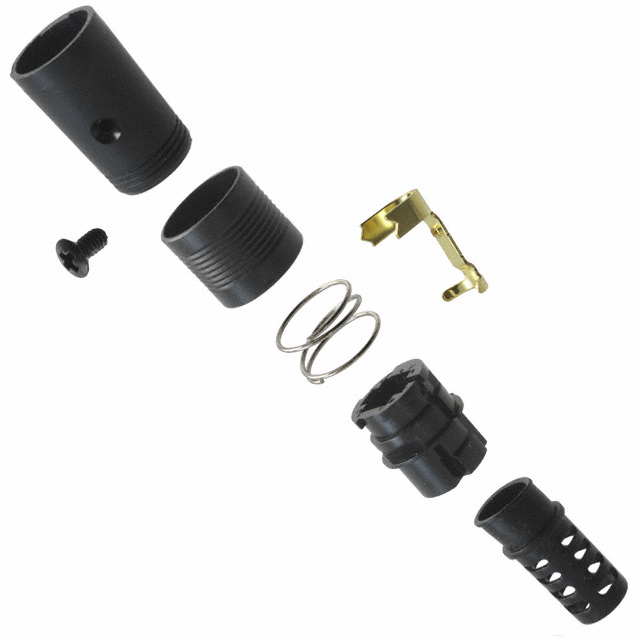

Includes		6 pcs - 1 Connector, 1 Backshell, 1 Cable Clamp, 1 Screw, 1 Spring, 1 Strain Relief
Contact Size		1.2mm
Material Flammability Rating		UL94 V-0
Note		Contacts Not Included
Housing Color		Black
Contact Shape		Circular
Shell Material		Polycarbonate (PC)
Insert Material		Polycarbonate (PC)

RESOURCE TYPE		LINK
Datasheets		Mult devs Material manufacturer chg 23/AUG/2018
Datasheets		RP13A Plug

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.6000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

Can ship immediately.
