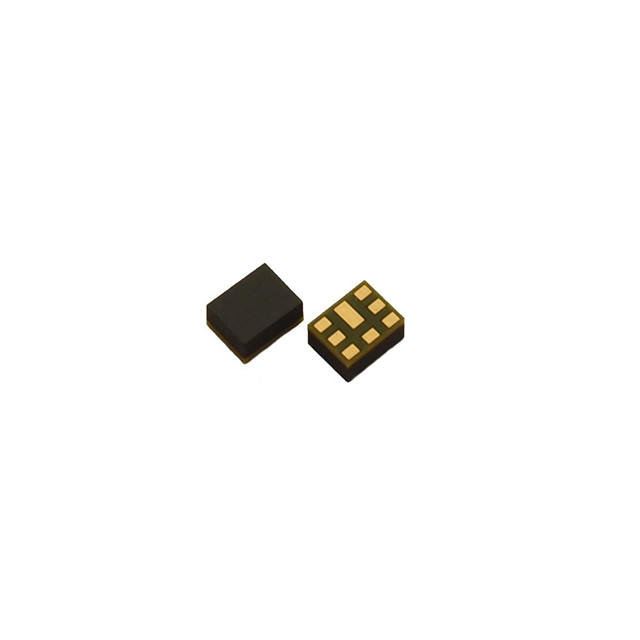

RSD-1950.000-2140.000-1612-TR

RSD-1950.000-2140.000-1612-TR

Part Number	RSD-1950.000-2140.000-1612-TR
Manufacturer	Raltron
Other Part Numbers	2151-RSD-1950.000-2140.000-1612-TR-ND 2151-RSD-1950.000-2140.000-1612-TRCT-ND 2151-RSD-1950.000-2140.000-1612-TRDKR-ND 2151-RSD-1950.000-2140.000-1612-TR -2344-RSD-1950.000-2140.000-1612-TR 2151-RSD-1950.000-2140.000-1612-TRDKR 2151-RSD-1950.000-2140.000-1612-TRCT -2344-RSD-1950.000-2140.000-1612-TR-ND -2344-RSD-1950.000-2140.000-1612-TRCT
Description	RF DUPLEXER 1.95/2.14GHZ 8SMD
Detailed Description	RF Duplexer 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz 8-SMD, No Lead
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Multiplexers
Manufacturer		Raltron
Series		RSD
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		8-SMD, No Lead
Mounting Type		Surface Mount
Type		Duplexer
Frequency Bands (Low / High)		1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz
Low Band Attenuation (min / max dB)		44.00dB / 54.00dB
High Band Attenuation (min / max dB)		50.00dB / 56.00dB
Return Loss (Low Band / High Band)		1.7dB / 2.0dB

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RSD-1950.000-2140.000-1612-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 20

Can ship immediately.
