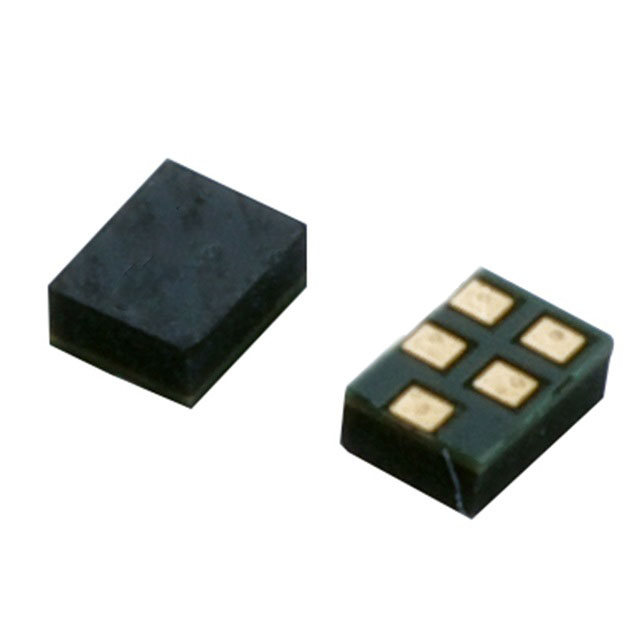

RSF-1962.500-63800-1109-TR

RSF-1962.500-63800-1109-TR

Part Number	RSF-1962.500-63800-1109-TR
Manufacturer	Raltron
Other Part Numbers	2151-RSF-1962.500-63800-1109-TR-ND 2151-RSF-1962.500-63800-1109-TRCT-ND 2151-RSF-1962.500-63800-1109-TRDKR-ND 2151-RSF-1962.500-63800-1109-TRCT -2344-RSF-1962.500-63800-1109-TR-ND -2344-RSF-1962.500-63800-1109-TRCT 2151-RSF-1962.500-63800-1109-TR 2151-RSF-1962.500-63800-1109-TRDKR -2344-RSF-1962.500-63800-1109-TR
Description	FILTER SAW 1.9625GHZ 5SMD
Detailed Description	1.9625GHz Frequency Cell Phone RF SAW Filter (Surface Acoustic Wave) 2.7dB 63.8MHz Bandwidth 5-SMD, No Lead
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters SAW Filters
Manufacturer		Raltron
Series		RSF
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		5-SMD, No Lead
Size / Dimension		0.043" L x 0.035" W (1.10mm x 0.90mm)
Mounting Type		Surface Mount
Insertion Loss		2.7dB
Bandwidth		63.8MHz
Applications		Cell Phone
Frequency - Center		1.9625GHz
Height (Max)		0.026" (0.65mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RSF-1962.500-63800-1109-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 20

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$1.30	$1.30
Total Amount: $1.30

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
3,000	$0.18	$540.00
6,000	$0.17	$1,020.00
15,000	$0.16	$2,400.00
30,000	$0.15	$4,500.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$1.30	$1.30
10	$0.96	$9.60
25	$0.93	$23.25
50	$0.91	$45.50
100	$0.83	$83.00
250	$0.80	$200.00
500	$0.69	$345.00
1,000	$0.65	$650.00
