RT2012-32.768-9-20-EXT-TR

RT2012-32.768-9-20-EXT-TR

Part Number	RT2012-32.768-9-20-EXT-TR
Manufacturer	Raltron
Other Part Numbers	2151-RT2012-32.768-9-20-EXT-TR-ND 2151-RT2012-32.768-9-20-EXT-TRCT-ND 2151-RT2012-32.768-9-20-EXT-TRDKR-ND 2151-RT2012-32.768-9-20-EXT-TR 2151-RT2012-32.768-9-20-EXT-TRDKR 2151-RT2012-32.768-9-20-EXT-TRCT

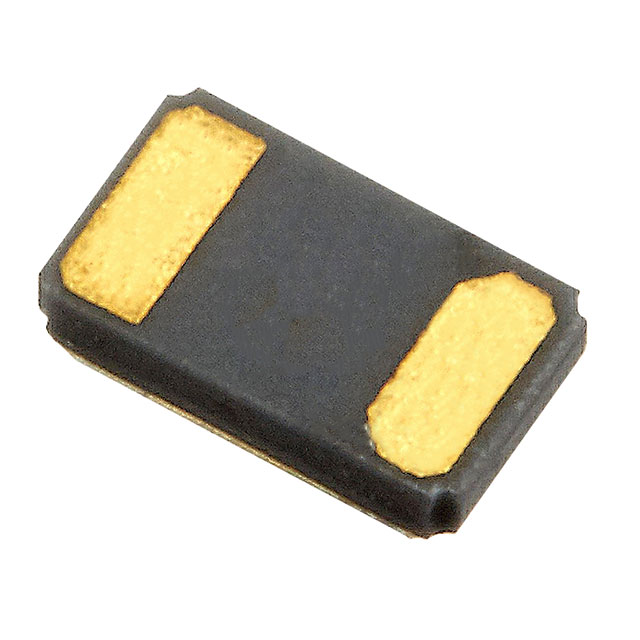

Description	CRYSTAL 32.7680KHZ 9PF SMD
Detailed Description	32.768 kHz ±20ppm Crystal 9pF 90 kOhms 2-SMD, No Lead
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		RT2012
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD, No Lead
Load Capacitance		9pF
Size / Dimension		0.079" L x 0.047" W (2.00mm x 1.20mm)
Mounting Type		Surface Mount
Type		kHz Crystal (Tuning Fork)
Operating Temperature		-40°C ~ 85°C
Frequency Tolerance		±20ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.024" (0.60mm)
ESR (Equivalent Series Resistance)		90 kOhms
Frequency		32.768 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RT2012-32.768-9-20-EXT-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 10569

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.75	$0.75
Total Amount: $0.75

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
3,000	$0.26	$780.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.75	$0.75
10	$0.62	$6.20
50	$0.56	$28.00
100	$0.50	$50.00
500	$0.47	$235.00
1,000	$0.40	$400.00
