RT5090FGQW

Part Number
RT5090FGQW
Manufacturer Richtek
Other Part Numbers
1028-RT5090FGQWTR-ND
1028-RT5090FGQWCT-ND
1028-RT5090FGQWDKR-ND
1028-RT5090FGQWDKR
1028-RT5090FGQWCT
1028-RT5090FGQWTR
Description IC PMIC FOR TV SYSTEM WQFN-40
Detailed Description PMIC - Voltage Regulators - Linear Switching 5 Output Step-Down (Buck) Synchronous (4), Linear (LDO) (1) 450kHz, 1MHz, 1.5MHz 40-WQFN (5x5)
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Richtek
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

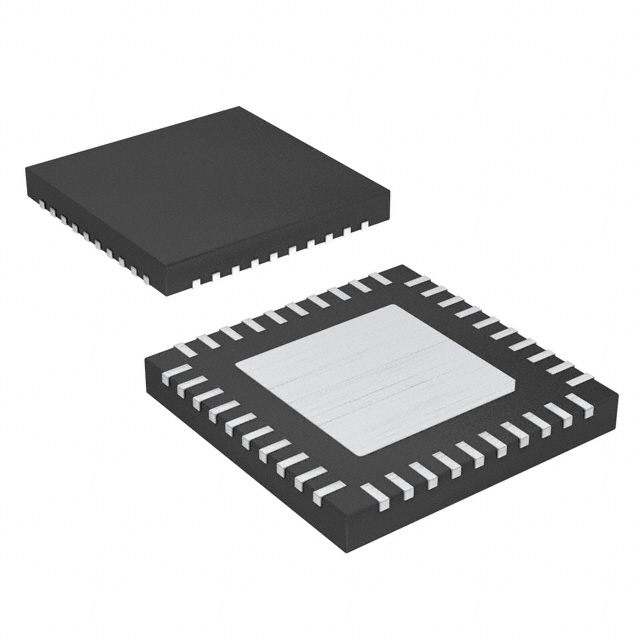

Package / Case 40-WFQFN Exposed Pad
Mounting Type Surface Mount
Operating Temperature -40°C ~ 125°C (TJ)
Voltage - Supply 2.7V ~ 27V
Frequency - Switching 450kHz, 1MHz, 1.5MHz
Topology Step-Down (Buck) Synchronous (4), Linear (LDO) (1)
Supplier Device Package 40-WQFN (5x5)
Voltage/Current - Output 1 Controller, Programmable, Programmable, 5V
Voltage/Current - Output 2 Controller, Programmable, Programmable, 0.7V ~ 1.5V, 3.5A
Voltage/Current - Output 3 Controller, Programmable, Programmable, 0.7V ~ 1.5V, 6A
w/LED Driver No
w/Supervisor No
w/Sequencer Yes
Number of Outputs 5

Documents & Media

RESOURCE TYPE LINK
Datasheets RoHS Declaration
Datasheets Richtek REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1500

Can ship immediately.
