RT6575BGQW

Part Number
RT6575BGQW
Manufacturer Richtek
Other Part Numbers
1028-RT6575BGQWTR-ND
1028-RT6575BGQWCT-ND
1028-RT6575BGQWDKR-ND
1028-RT6575BGQWCT
1028-RT6575BGQWTR
1028-RT6575BGQWDKR
Description IC 2CH CTRLR WITH LDO WQFN-20
Detailed Description PMIC - Voltage Regulators - Linear Switching 4 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (2) 300kHz, 355kHz 20-WQFN (3x3)
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Richtek
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

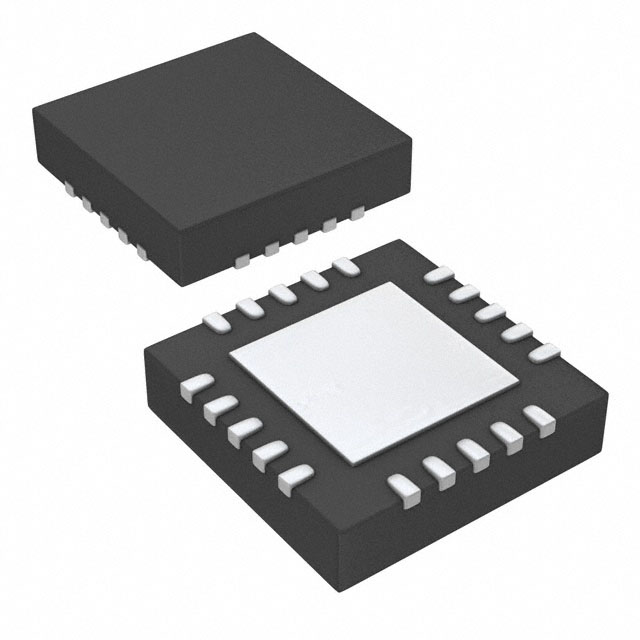

Package / Case 20-WFQFN Exposed Pad
Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C (TA)
Voltage - Supply 5V ~ 25V
Frequency - Switching 300kHz, 355kHz
Topology Step-Down (Buck) Synchronous (2), Linear (LDO) (2)
Supplier Device Package 20-WQFN (3x3)
Voltage/Current - Output 1 Adjustable, Adjustable, Fixed, 2V ~ 5.5V
Voltage/Current - Output 2 Adjustable, Adjustable, Fixed, 2V ~ 4V
Voltage/Current - Output 3 Adjustable, Adjustable, Fixed, 3.3V, 100mA
w/LED Driver No
w/Supervisor No
w/Sequencer Yes
Number of Outputs 4

Documents & Media

RESOURCE TYPE LINK
Datasheets RoHS Declaration
Datasheets Richtek REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 2967

Can ship immediately.
