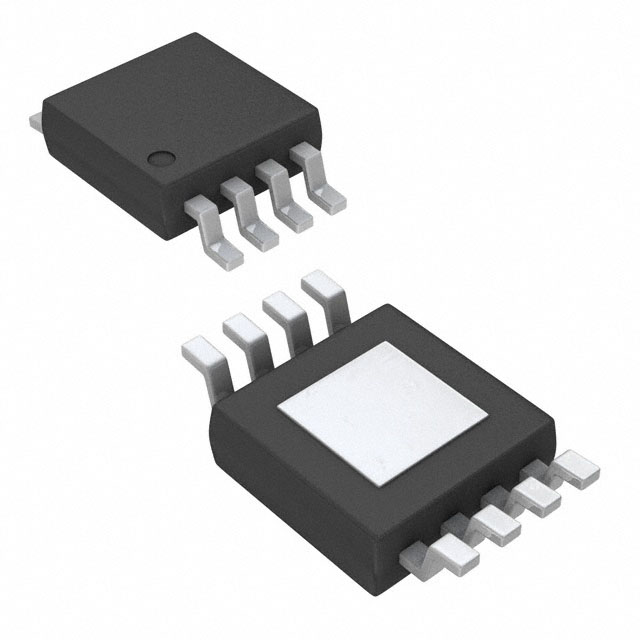

RT7257ALZSP _ Voltage Regulators - DC DC Switching Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	RT7257ALZSP
Manufacturer	Richtek
Other Part Numbers	1028-1091-2-ND 1028-1091-1-ND 1028-1091-6-ND 1028-1091-6 1028-1091-2 1028-1091-1 -RT7257ALZSP
Description	IC REG BUCK ADJUSTABLE 3A 8SOP
Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-SOIC (0.154", 3.90mm Width) Exposed Pad

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Manufacturer		Richtek
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		8-SOIC (0.154", 3.90mm Width) Exposed Pad
Output Type		Adjustable
Mounting Type		Surface Mount
Number of Outputs		1
Function		Step-Down
Current - Output		3A
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		Positive
Frequency - Switching		340kHz
Voltage - Input (Max)		18V
Topology		Buck
Supplier Device Package		8-SOP-EP
Synchronous Rectifier		Yes
Voltage - Output (Max)		15V
Voltage - Input (Min)		4.5V
Voltage - Output (Min/Fixed)		0.8V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
