RT8209AGQW

Part Number
RT8209AGQW
Manufacturer Richtek
Other Part Numbers
1028-1042-2-ND
1028-1042-1-ND
1028-1042-1
RT8209AGQW-ND
1028-1042-2
-RT8209AGQW
Description IC REG CTRLR BUCK 16WQFN
Detailed Description Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-WQFN (3x3)
Datasheet Datasheet

Product Attributes

Category
Manufacturer Richtek
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

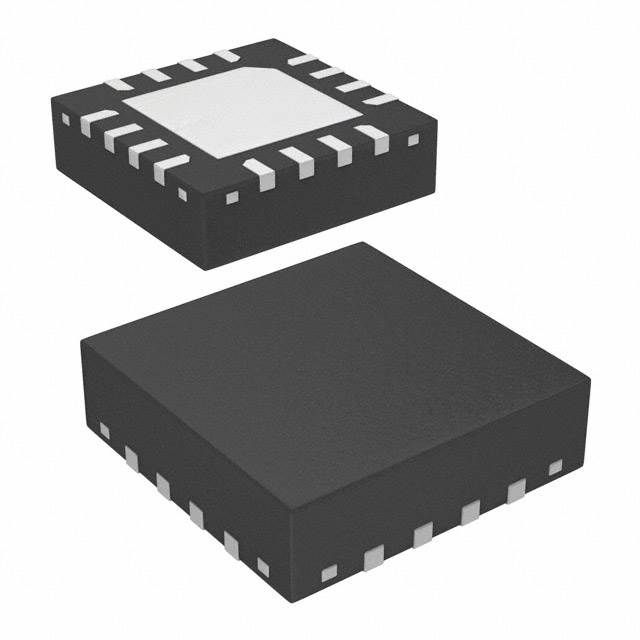

Package / Case 16-WFQFN Exposed Pad
Output Type Transistor Driver
Mounting Type Surface Mount
Function Step-Down
Operating Temperature -40°C ~ 85°C (TA)
Output Configuration Positive
Topology Buck
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Supplier Device Package 16-WQFN (3x3)
Synchronous Rectifier Yes
Control Features Current Limit, Enable, On Time Control, Phase Control, Power Good
Output Phases 1
Clock Sync No
Number of Outputs 1

Documents & Media

RESOURCE TYPE LINK
Datasheets RoHS Declaration
Datasheets Richtek REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
