Part Number | RT8228AZQW |
---|---|
Manufacturer | Richtek |
Other Part Numbers | 1028-1131-2-ND 1028-1131-2 1028-1131-1 -RT8228AZQW 1028-1131-6 |
Description | IC REG CTRLR BUCK 12WQFN |
Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 12-WQFN (2x2) |
Category | ||
---|---|---|
Manufacturer | Richtek | |
Series | ||
Packaging | Tape & Reel (TR) | |
Part Status | Discontinued | |

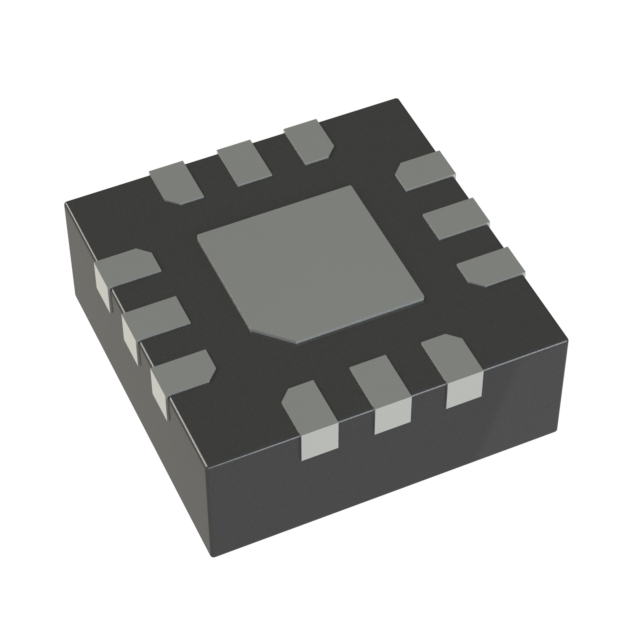

Package / Case | 12-WFQFN Exposed Pad | |
Output Type | Transistor Driver | |
Mounting Type | Surface Mount | |
Function | Step-Down | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Output Configuration | Positive | |
Topology | Buck | |
Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | |
Supplier Device Package | 12-WQFN (2x2) | |
Synchronous Rectifier | Yes | |
Control Features | Current Limit, Enable, On Time Control, Phase Control, Power Good | |
Output Phases | 1 | |
Clock Sync | No | |
Number of Outputs | 1 |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
