RT8462ZQW

Part Number
RT8462ZQW
Manufacturer Richtek
Other Part Numbers
1028-1242-2-ND
1028-1242-1-ND
1028-1242-6-ND
1028-1242-1
1028-1242-2
-RT8462ZQW
1028-1242-6
Description IC LED DRIVER CTRLR PWM 16WQFN
Detailed Description LED Driver IC 1 Output DC DC Controller Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 16-WQFN (3x3)

Product Attributes

Category
Manufacturer Richtek
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

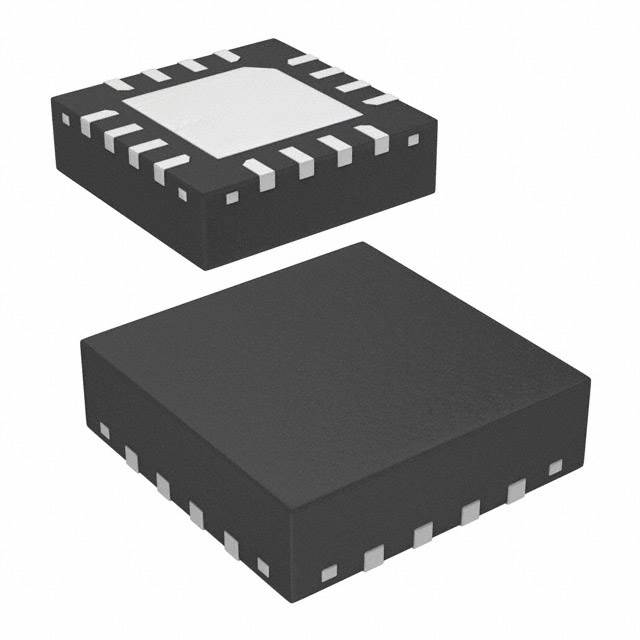

Package / Case 16-WFQFN Exposed Pad
Mounting Type Surface Mount
Number of Outputs 1
Frequency 100kHz ~ 1MHz
Type DC DC Controller
Operating Temperature -40°C ~ 125°C (TJ)
Applications Backlight, Lighting
Internal Switch(s) No
Topology Step-Down (Buck), Step-Up (Boost)
Supplier Device Package 16-WQFN (3x3)
Dimming Analog, PWM
Voltage - Supply (Min) 4.5V
Voltage - Supply (Max) 36V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
