RT9624CGQWA

RT9624CGQWA

Part Number	RT9624CGQWA
Manufacturer	Richtek
Other Part Numbers	1028-RT9624CGQWATR-ND 1028-RT9624CGQWACT-ND 1028-RT9624CGQWADKR-ND 1028-RT9624CGQWATR 1028-RT9624CGQWACT 1028-RT9624CGQWADKR
Description	IC BUCK MOSFET DRVR WDFN-8S
Detailed Description	High-Side or Low-Side Gate Driver IC Non-Inverting 8-WDFN-SL (2x2)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Gate Drivers
Manufacturer		Richtek
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

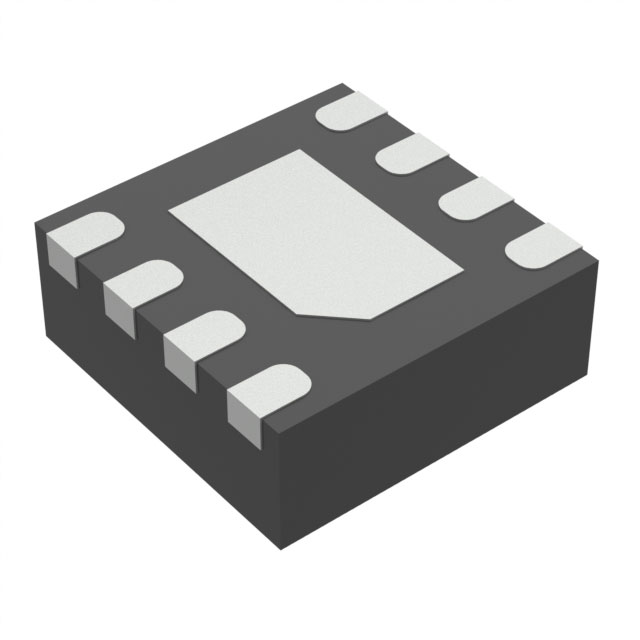

Package / Case		8-WFDFN Exposed Pad
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C (TA)
Voltage - Supply		4.5V ~ 13.2V
Input Type		Non-Inverting
High Side Voltage - Max (Bootstrap)		46 V
Supplier Device Package		8-WDFN-SL (2x2)
Rise / Fall Time (Typ)		25ns, 12ns
Channel Type		Synchronous
Driven Configuration		High-Side or Low-Side
Number of Drivers		2
Gate Type		N-Channel MOSFET
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RoHS Declaration
Datasheets		Richtek REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1900

Can ship immediately.
