RT9629AZQW

RT9629AZQW

Part Number	RT9629AZQW
Manufacturer	Richtek
Other Part Numbers	1028-1234-2-ND 1028-1234-1-ND 1028-1234-6-ND -RT9629AZQW 1028-1234-2 1028-1234-1 1028-1234-6
Description	IC GATE DRVR HALF-BRIDGE 24WQFN
Detailed Description	Half-Bridge Gate Driver IC Inverting, Non-Inverting 24-WQFN (5x5)

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Gate Drivers
Manufacturer		Richtek
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

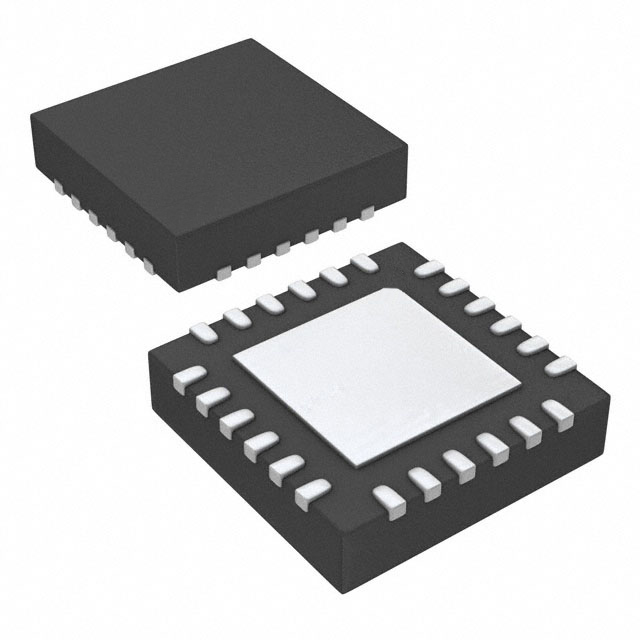

Package / Case		24-WQFN Exposed Pad
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C (TJ)
Voltage - Supply		4.5V ~ 13.2V
Input Type		Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap)		15 V
Supplier Device Package		24-WQFN (5x5)
Rise / Fall Time (Typ)		25ns, 12ns
Channel Type		3-Phase
Driven Configuration		Half-Bridge
Number of Drivers		6
Gate Type		N-Channel MOSFET
Logic Voltage - VIL, VIH		0.7V, 3.2V
DigiKey Programmable		Not Verified

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 421

Can ship immediately.
