RT9742EGJ5 _ Power Distribution Switches, Load Drivers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	RT9742EGJ5
Manufacturer	Richtek
Other Part Numbers	1028-1432-2-ND 1028-1432-1-ND 1028-1432-6-ND 1028-1432-6 1028-1432-2 1028-1432-1 -RT9742EGJ5
Description	IC PWR SWTCH N-CHAN 1:1 TSOT23-5
Detailed Description	Power Switch/Driver 1:1 N-Channel 1.5A TSOT-23-5
Manufacturer Standard Lead Time	16 weeks

Category		Integrated Circuits (ICs) Power Management (PMIC) Power Distribution Switches, Load Drivers
Manufacturer		Richtek
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Load Discharge, Status Flag

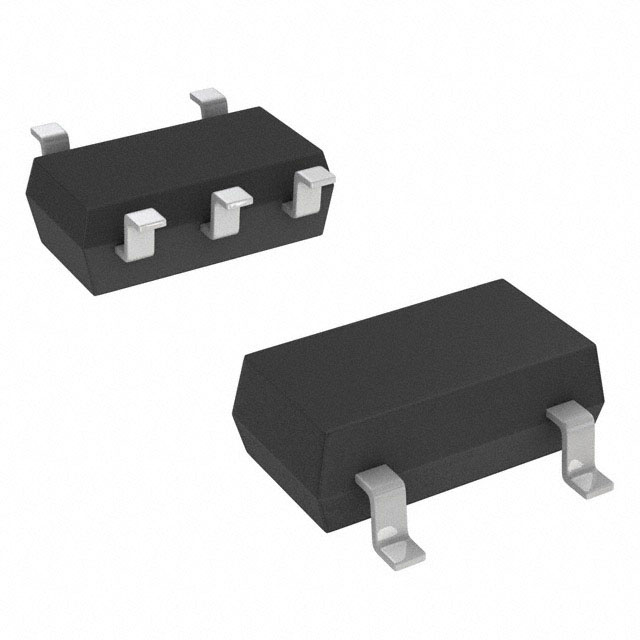

Package / Case		SOT-23-5 Thin, TSOT-23-5
Output Type		N-Channel
Mounting Type		Surface Mount
Number of Outputs		1
Interface		On/Off
Switch Type		USB Switch
Operating Temperature		-40°C ~ 85°C (TA)
Output Configuration		High Side
Rds On (Typ)		70mOhm
Input Type		Non-Inverting
Voltage - Load		2.7V ~ 6V
Voltage - Supply (Vcc/Vdd)		Not Required
Current - Output (Max)		1.5A
Ratio - Input:Output		1:1
Supplier Device Package		TSOT-23-5
Fault Protection		Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
