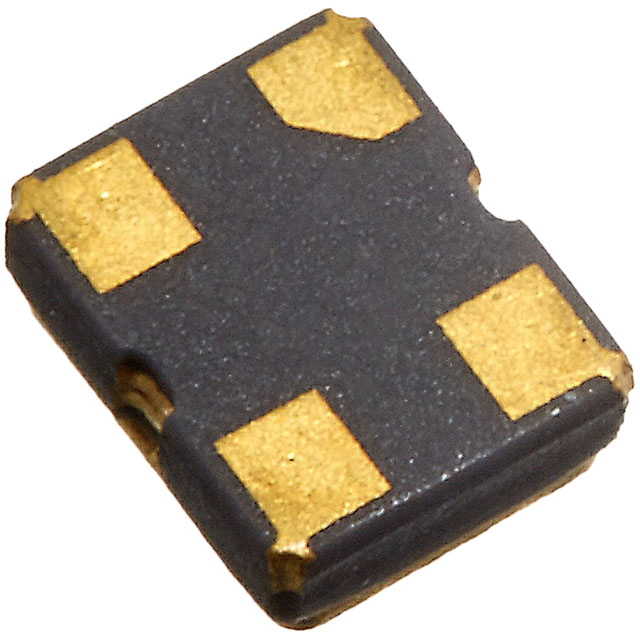

RTX-2520CD31-S-26.000-TR

RTX-2520CD31-S-26.000-TR

Part Number	RTX-2520CD31-S-26.000-TR
Manufacturer	Raltron
Other Part Numbers	2151-RTX-2520CD31-S-26.000-TR-ND 2151-RTX-2520CD31-S-26.000-TRCT-ND 2151-RTX-2520CD31-S-26.000-TRDKR-ND 2151-RTX-2520CD31-S-26.000-TRCT 2151-RTX-2520CD31-S-26.000-TRDKR 2151-RTX-2520CD31-S-26.000-TR
Description	XTAL OSC TCXO 26MHZ 1.8V CLP SNW
Detailed Description	26 MHz TCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Raltron
Series		RTX-2520
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Size / Dimension		0.098" L x 0.079" W (2.50mm x 2.00mm)
Mounting Type		Surface Mount
Output		Clipped Sine Wave
Type		TCXO
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±1.5ppm
Voltage - Supply		1.8V
Current - Supply (Max)		2.5mA
Height - Seated (Max)		0.031" (0.80mm)
Frequency		26 MHz
Base Resonator		Crystal

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RTX-2520CD31-S-26.000-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
