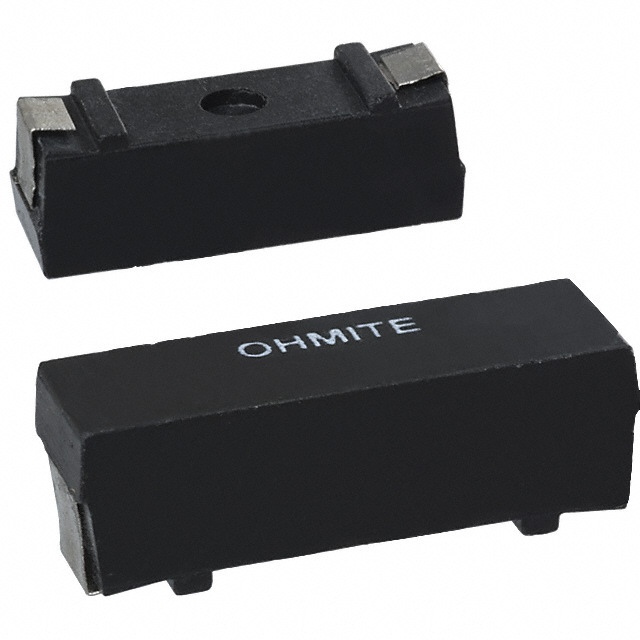

RW3R5EA1R00JT

RW3R5EA1R00JT

Part Number	RW3R5EA1R00JT
Manufacturer	Ohmite
Other Part Numbers	RW3R5EA1R00JTR-ND RW3R5EA1R00JTTR 2266-RW3R5EA1R00JT RW3R5EA1R00JTR RW3R5EA1R00JTTR-ND
Description	RES SMD 1 OHM 5% 3.5W J LEAD
Detailed Description	1 Ohms ±5% 3.5W Chip Resistor 8127 J-Lead Current Sense Wirewound
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		Ohmite
Series		RW
Packaging		Tape & Reel (TR)
Part Status		Active
Power (Watts)		3.5W
Tolerance		±5%
Features		Current Sense
Package / Case		8127 J-Lead
Temperature Coefficient		±50ppm/°C
Size / Dimension		0.811" L x 0.273" W (20.60mm x 6.93mm)
Composition		Wirewound
Operating Temperature		-55°C ~ 150°C
Number of Terminations		2
Supplier Device Package		SMD J-Lead, Recessed
Height - Seated (Max)		0.278" (7.06mm)
Resistance		1 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RW3R5EA1R00JT
Datasheets		Multiple Series Terminal Dimensions 24/Jan/2020
Datasheets		RW Series End
Datasheets		RW Series Bottom

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS non-compliant
