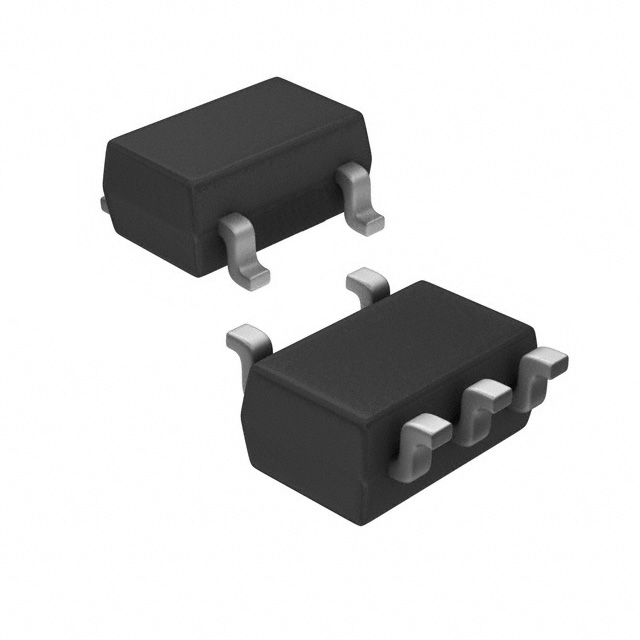

S-1701N5015-M5T1G

Part Number
S-1701N5015-M5T1G
Manufacturer ABLIC
Other Part Numbers
S-1701N5015-M5T1G-ND
Description IC REG CONV BATTERY 1OUT SOT23-5
Detailed Description - Converter, Battery Powered Devices Voltage Regulator IC 1 Output SOT-23-5
Datasheet Datasheet

Product Attributes

Category
Manufacturer ABLIC
Series
Packaging
Tape & Reel (TR)
Part Status Not For New Designs
Package / Case SC-74A, SOT-753
Voltage - Output 5V
Mounting Type Surface Mount
Number of Outputs 1
Voltage - Input 2V ~ 6.5V
Operating Temperature -40°C ~ 85°C
Applications Converter, Battery Powered Devices
Supplier Device Package SOT-23-5

Documents & Media

RESOURCE TYPE LINK
Datasheets S-1701N5015-M5T1G
Datasheets Solder Plating Material Chg 10/Dec/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Not recommended for new design, minimums may apply.
