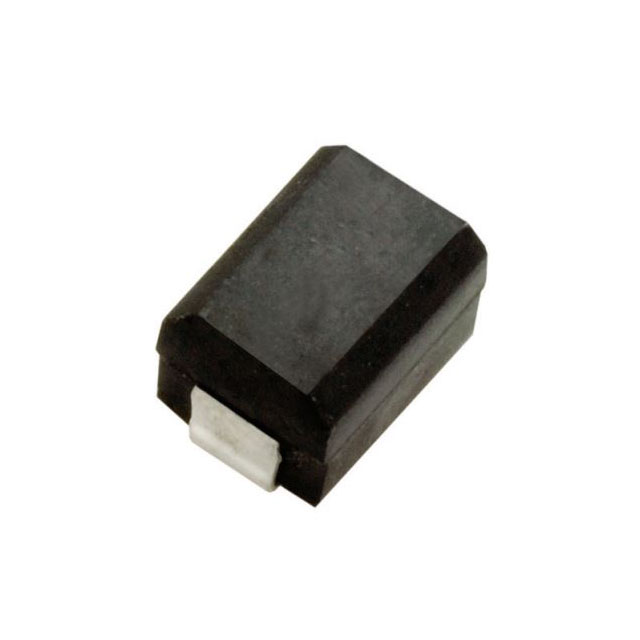

S1812R-104J _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	S1812R-104J
Manufacturer	API Delevan
Other Part Numbers	197-S1812R-104JTR-ND 197-S1812R-104JCT-ND 197-S1812R-104JDKR-ND Q10048063 Q4178481F 197-S1812R-104JDKR S1812R-104J-NDL S1812R-104J-ND 197-S1812R-104JTR S1812R-104J TR 500 197-S1812R-104JCT
Description	FIXED IND 100UH 169MA 7 OHM SMD
Detailed Description	100 µH Shielded Inductor 169 mA 7Ohm Max 1812 (4532 Metric)
Manufacturer Standard Lead Time	7 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		API Delevan
Series		S1812R
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		1812 (4532 Metric)
Size / Dimension		0.177" L x 0.126" W (4.50mm x 3.20mm)
Mounting Type		Surface Mount
Shielding		Shielded
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		7Ohm Max
Q @ Freq		40 @ 790kHz
Frequency - Self Resonant		7MHz
Material - Core		Ferrite
Inductance Frequency - Test		790 kHz
Supplier Device Package		1812
Height - Seated (Max)		0.134" (3.40mm)
Inductance		100 µH
Current Rating (Amps)		169 mA

RESOURCE TYPE		LINK
Datasheets		S1812R-104J

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
