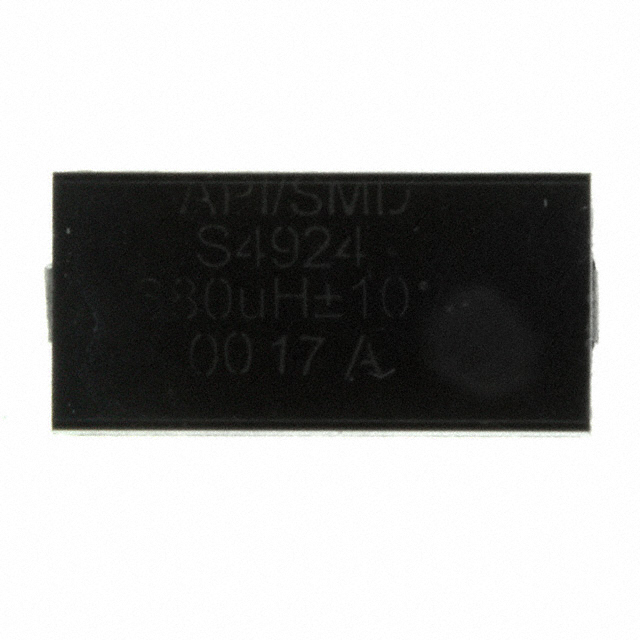

S4924-684K

Part Number
S4924-684K
Manufacturer API Delevan
Other Part Numbers
S4924-684KTR-ND
S4924-684KCT
S4924-684KTR
S4924-684K TR 800
Description FIXED IND 680UH 160MA 11.8OHM SM
Detailed Description 680 µH Shielded Inductor 160 mA 11.8Ohm Max Nonstandard
Manufacturer Standard Lead Time 7 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer API Delevan
Series
S4924
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±10%
Package / Case Nonstandard
Size / Dimension 0.505" L x 0.240" W (12.82mm x 6.09mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 11.8Ohm Max
Q @ Freq 60 @ 790kHz
Frequency - Self Resonant 4.5MHz
Current - Saturation (Isat) 38mA
Material - Core Ferrite
Inductance Frequency - Test 790 kHz
Height - Seated (Max) 0.220" (5.58mm)
Inductance 680 µH
Current Rating (Amps) 160 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets S4924-684K
Datasheets Multiple Series Marking 05/Sep/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant
