S6006NTP

S6006NTP

Part Number	S6006NTP
Manufacturer	Wickmann / Littelfuse
Other Part Numbers	S6006NTP-ND -S6006NTP
Description	SCR 600V 6A TO263

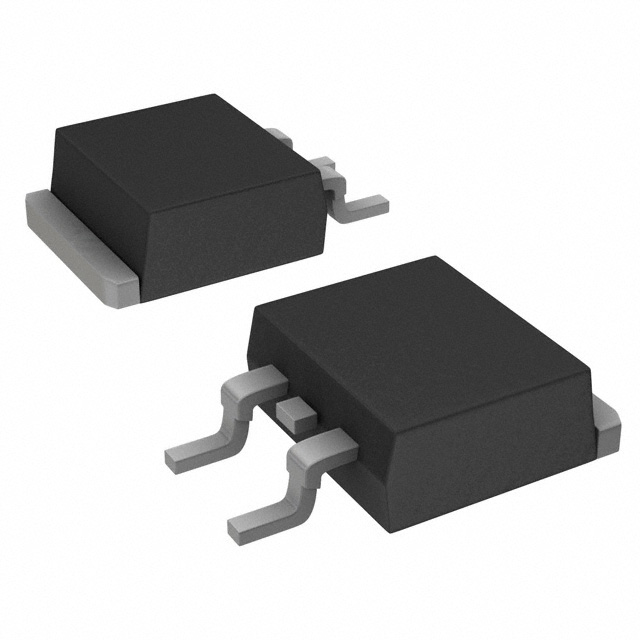

Detailed Description	SCR 600 V 6 A Standard Recovery Surface Mount TO-263 (D2PAK)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		Wickmann / Littelfuse
Series
Packaging		Tube
Part Status		Active
Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
SCR Type		Standard Recovery
Operating Temperature		-40°C ~ 125°C (TJ)
Current - Hold (Ih) (Max)		30 mA
Current - Gate Trigger (Igt) (Max)		15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		83A, 100A
Current - On State (It (AV)) (Max)		3.8 A
Voltage - Gate Trigger (Vgt) (Max)		1.5 V
Voltage - On State (Vtm) (Max)		1.6 V
Current - Off State (Max)		10 µA
Supplier Device Package		TO-263 (D2PAK)
Current - On State (It (RMS)) (Max)		6 A
Voltage - Off State		600 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		S6006NTP
Datasheets		Packing Options

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8541.30.0080
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
