SBR20U40CTFP

Part Number
SBR20U40CTFP
Manufacturer Zetex Semiconductors (Diodes Inc.)
Other Part Numbers
SBR20U40CTFP-ND
Description DIODE ARR SBR 40V 10A ITO220AB
Detailed Description Diode Array 1 Pair Common Cathode 40 V 10A Through Hole TO-220-3 Full Pack, Isolated Tab
Datasheet Datasheet

Product Attributes

Category
Manufacturer Zetex Semiconductors (Diodes Inc.)
Series
SBR®
Packaging
Tube
Part Status Obsolete

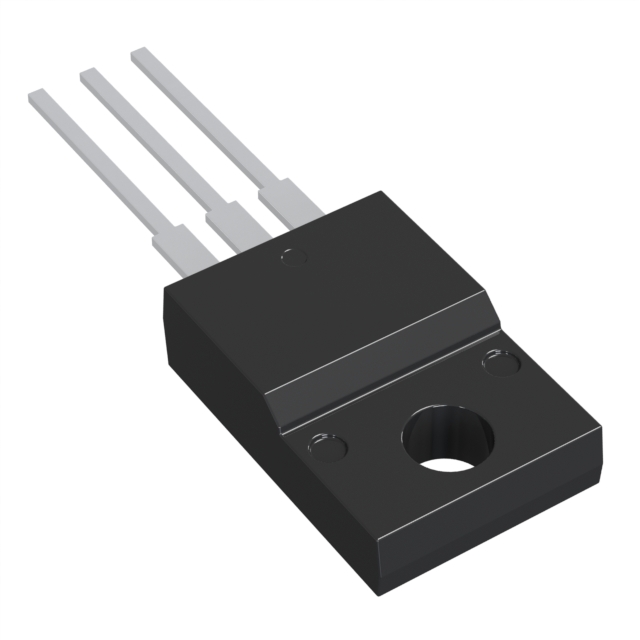

Package / Case TO-220-3 Full Pack, Isolated Tab
Mounting Type Through Hole
Speed Fast Recovery =< 500ns, > 200mA (Io)
Technology Super Barrier
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 10A
Supplier Device Package ITO-220AB
Operating Temperature - Junction -65°C ~ 150°C
Voltage - DC Reverse (Vr) (Max) 40 V
Voltage - Forward (Vf) (Max) @ If 470 mV @ 10 A
Current - Reverse Leakage @ Vr 500 µA @ 40 V

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
